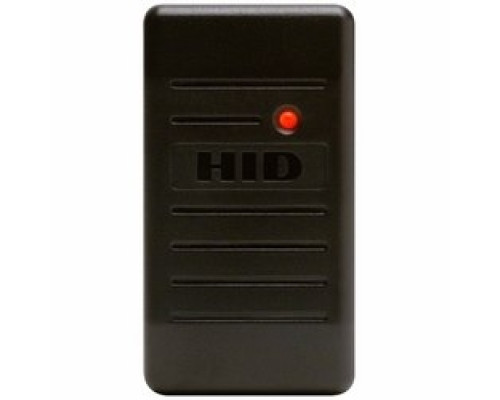

HID GLOBAL CORPORATION 6005BGB00 ProxPoint Plus Proximity Card Reader, Current Revision No - B, Classic Charcoal Gray, Pigtail 18 Inch, Beep On, LED Normally Red, Reader Flashes Green on Tag Read, Wiegand Interface

Features

• Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled
• Features a beeper and multicolor LED which can be hostand/ or locally controlled
• Enables various beeper and LED configurations, depending on individual site requirements
• Can read HID cards with formats up to 85 bits
• Designed for mounting directly onto metal with no change in read range performance
• Wiegand output
• Compatible with all standard access control systems
• Aesthetic design available in two cover designs and in four colors to match any decor
• Includes multilingual installation manual
• Security - recognizes card formats up to 85 bits, with over 137 billion unique codes
• Audiovisual indication - when a proximity card is presented to the reader, the red LED flashes green and the beeper sounds, the multicolor LED and beeper can also be controlled individually by the host system
• Diagnostics - on reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment
• Indoor/outdoor design - sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments, providing reliable performance and a high degree of vandal resistance
• Easily interfaced - wiegand output model interfaces with all existing Wiegand protocol access control systems

Specification Description

Typical maximum* read range:

ProxCard II Card - up to 3" (7.6 cm)

ISOProx II card - up to 2.5" (6.35 cm)

DuoProx II Card - up to 2.5" (6.35 cm)

Smart ISOProx/DuoProx II Cards - up to 2.5" (6.35 cm)

Proximity & MIFARE Card - up to 2.5cm)
