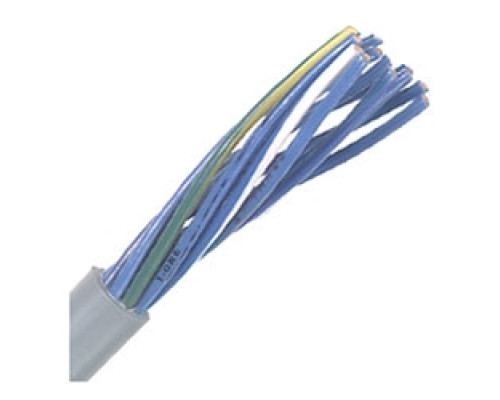

Model:
251619IB, OLF-251619IBSKU:
251619IB, OLF-251619IBAvailability:
In Stockdocuments:
Spec Sheet
Request Quote
Features
- Industrial grade PVC jacket (Oil Res I)
- Conforms to NFPA 79 2007 standards for wiring machinery
- UL TC-ER, MTW & CSA CIC/TC approved
- Number coded for easy wiring with either black, blue, red, orange or yellow conductors
- Machine Tool machinery, Food & verage, Processing equipment, Automotive and Machine wiring for conformance to NFPA 79 2007
Specification Description
Conductor Type: Bare Copper
Insulation: PVC/nylon
Jacket: Gray PVC
Shield type: Unshielded
Temperature range: -25C to +90C
Nominal voltage: 600/1000 Volt
Approvals: UL, ULTC, CSA, CE, RoHS, NFPA
RoHS: Y
Technical
Conductor Count
19 CONDUCTOR
Conductor Material
BARE COPPER
Conductor Size
16 AWG
Conductor Type
STRANDED
Earth/Ground Wires
YES
Insulation Material
PVC/NYL-POLYVINYL CHLORIDE/NYLON
Jacket Material
TPE-THERMOPLASTIC ELASTOMER
Number of Ground Wires
1 WIRE
Product Type
FLEX POW
Screen/Shield
UNSHIELDED
Standards
UL/CSA
Voltage Range
600V
