Model:
602408TP, 2FL-2408PSOSKU:
602408TP, 2FL-2408PSOAvailability:
In Stockdocuments:
Spec Sheet
Request Quote
Features

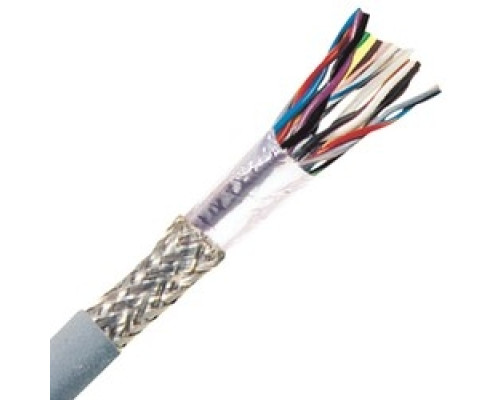

- The UNITRONIC 190 series of communication cables have been designed for general purpose installation in industrial signal and bus applications
- EMC resistant designs with foil and braid shielding construction is available in all conductor and pair styles
Specification Description
Conductor Type: Tinned Copper
Insulation: SR-PVC
Jacket: Gray PVC
Shield type: Unshielded, Foil Wrap & Tinned Copper Braid
Temperature range: -10C to +105C
Nominal voltage: 300 Volt
Approvals: UL, CSA, DNV
RoHS: N
Technical
Conductor Count
8 PAIRS
Conductor Material
TINNED COPPER
Conductor Size
24 AWG (AMERICAN WIRE GAUGE)
Conductor Type
STRANDED CONDUCTOR
Fire Rating
GENERAL PURPOSE
Insulation Material
SRPVC-SEMI-RIGID POLYVINYL CHLORIDE
Jacket Material
PVC-POLYVINYL CHLORIDE
NEC Rating
NEC CMG
Screen/Shield
YES
Screen/Shield Type
BRAID OVER FOIL SHIELD
Shield Construction
OVERALL FOIL & BRAID
