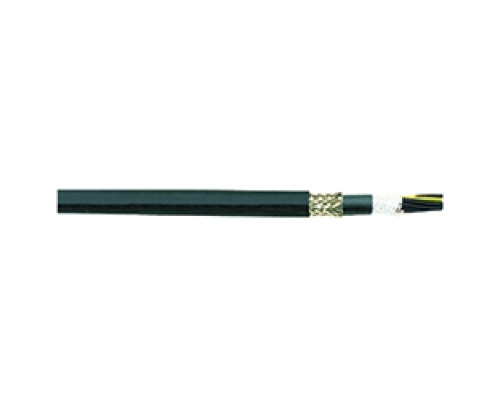

Model:
8916044S, 2RF-1604O-SSKU:
8916044S, 2RF-1604O-SAvailability:
In Stockdocuments:
Spec Sheet
Request Quote
Features
- Over 15 years of time tested performance to the most rigorous of industrial plant continuous flex applications
- Meets UL Oil Res I/II for long service life
- Resistant to harsh environments
- Pressure extruded jacket for precision connectorization
- Gantry bots, Cable tracks, Pick and place units, Conveyor systems, Machine tools and Other continuous flexing applications
Specification Description
Conductor Type: Bare Copper
Insulation: PVC
Jacket: Black PVC
Shield type: Unshielded, Tinned Copper Braid
Temperature range: -40C to +90C
Nominal voltage: 600 Volt
Approvals: UL, CSA, CE, RoHS
RoHS: Y
Technical
Conductor Count
4 CONDUCTOR
Conductor Material
BARE COPPER
Conductor Size
16 AWG
Conductor Type
STRANDED
Earth/Ground Wires
NO
Insulation Material
PVC-POLYVINYL CHLORIDE
Jacket Material
PVC-POLYVINYL CHLORIDE
Product Type
FLEX CONT
Screen/Shield
SHIELDED
Screen/Shield Type
BRAID
Standards
UL/CSA/CE
Voltage Range
600V
