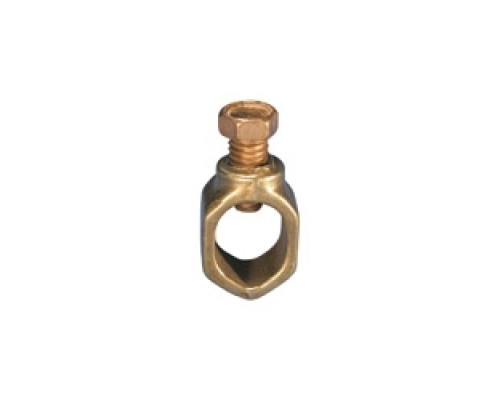

NVENT ERICO CP58 5/8" GROUND ROD CLAMP

Applications

ERITECH Ground Rod Clamps from ERICO provide a cost-effective method for connecting conductors to ground rods or rebar. The CP58 and CP34 clamps are designed to withstand a minimum torque of 300 in-lbs. The HDC Series is designed to withstand a minimum torque of 450 in-lbs. The CP58 Ground Rod Clamps are now UL and CSA Listed for 1/2" and 5/8" ground rods and #4 rebar. The CP58 clamps are designed to accept a conductor range from #10 solid to #2 stranded. The new listing reduces stocking requirements and inventory needs. The CP34 clamp is also range taking. The CP34 can be used on 1/2", 5/8" and 3/4" ground rods. The CP34 accommodates conductor sizes ranging from a #8 solid to a 1/0 stranded. Both the CP58 and the CP34 are UL and CSA Listed for direct burial. The HDC Series clamps are designed to withstand a minimum torque of 450 in-lbs. The HDC Series clamps can handle a wider range of conductors. In addition, the higher torque capability reduces potential damage to the connector from an overly aggressive installer.

Features

• Manufactured from high strength bronze alloy
• Durable/long lasting
• Exceeds UL torque requirement by 2x
• Stands up to over tightening
• HDC34SP is CSA Listed
• CP58 and CP34 are UL Listed for direct burial
• Multiple size capability with CP58 and CP34
• Made in USA

Specification Description

Approvals: BS2874/BS1400, UL
Conductor Size Range: 10.000 Sol [Min], 2.000 Str [Max]
Finish: Silicon Bronze
Ground Rod Size: 1/2 in. [Min], 5/8 in [Max]
Material: Bronze
Product Series: ERITECH Rod to Cable Clamps (Type C)
Standard Packaging Quantity: 50
Torque: 300 in lb.
Weight: 0.10 kg
