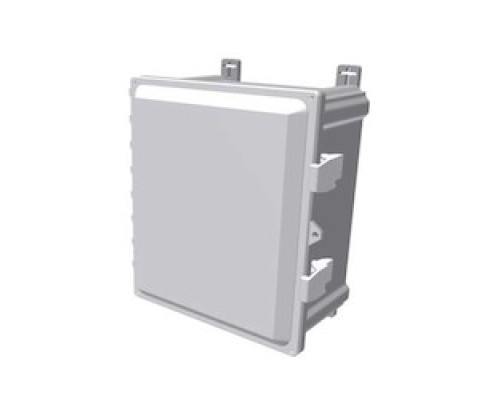

OBERON 1026-12106-00 12 in. NEMA 4 Plastic AP Enclosure/Opaque Door

Features

• FEATURES:
• - Compact, low-profile AP enclosure for indoor and outdoor applications such as stadiums and public hotspots
• - UV-stabilized for exposure to direct sunlight
• - Virtually transparent to wireless signals
• - Universal mounting plate allows easnstallation of most vendors’ APs
• - Cover is hinged; cover can be latched and locked with padlock (not included)
• SPECIFICATIONS:
• - Design: Polycarbonate NEMA AP enclosure designed for wall or mast mounting indoors or outdoors, where secure mounting required. Large enough for Cisco 3500/3600 APs. Clear, fully hinged, lockable door
• - Performance: Designed to NEMA 3R specifications for indoor/ outdoor wet, dirty, or corrosive environments. UV stabilized for exposure to direct sunlight. Transparent to wireless signals. Temperature rating from -20 to 240F. Paintable
• - Fully hinged, gasketed door with hasps for padlock
• - Internal plastic universal mounting panel
• - Large enough for Cisco 3800 DART connector and external antenna
• - Construction: UListed to UL50 and UL508A (File #E319779). Back-box is light gray UL94-5VA polycarbonate plastic. Door is polycarbonate plastic
• - Specify opaque grey door as -00 or tinted clear door as -C. See ordering guide below
• - For ventilation and drain kit, specify -V. See ordering guide below. -V includes a NEMA 3 capable vent for permitting air circulation, and a drain for installation in bottom of enclosure. Also includes a cord grip large enough for two Cat. 6A cables
• - For outdoor installation, the 1026 i s very light grey to reduce solar loading. Painting the 1026 a darker color will increase solar loading. Avoid mounting the 1026 where it is directly exposed to the sun
• - Size: See Configuration Guide below
• SAFETY:
• - Designed to NEMA 3R, 4, 4X, 12nd 6P, and IEC529-IP68 specifications for indoor/ outdoor wet, dirty, or corrosive environments
• - UL508A (File #E319779) listed; back-box and cover are light gray UL94-5VA Polycarbonate; tinted clear cover is UL94V-0 Polycarbonate
• INCLUDES:
• - (1) ernal ABS Mounting Plate
• - (1) NEMA 3R Breather Vent (-V ONLY)
• - (1) Drain Vent (-V ONLY)
• - (4) #10-32 Mounting Plate Screws
• - (4) #10 Washers
• - (4) #10-32 Lid Screws
• - (4) Small Hole Covers
• - (1) Large Hole Cover
• - (4) Mounting Feet (excluded fr2410)
• - (4) 1/4 in. -20 Mounting Feet Screws (4) (excluded from -242410)
• - (2) Cord Grips (-V ONLY)
• - (1) Installation Instructions
• ACCESSORIES:
• - 39-POLE-MOUNT-BRACKET - Model Series 1021, 1024, 1026: Pole Mount Kit
• - 39-RJ45-BULKHEAD - Bulkhe
