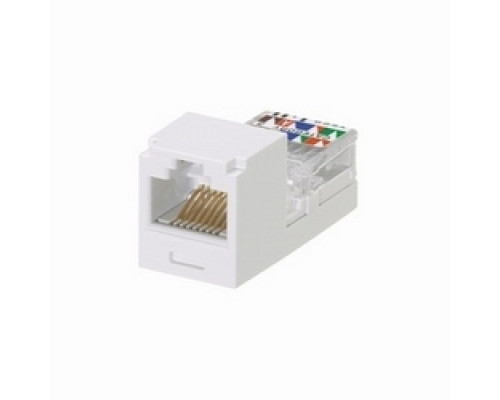

PANDUIT CJ66UWHY Module Cat3 UTP 6P6W USOC WH LFStyl

Features

• Patented lead frame termination style ensures twists are maintained to within 1/2"
• No punchdown tool required, optional termination tool (CJT-X) ensures conductors are fully terminated
• Termination cap provides excellent strain relief; helps control cable bend radius and securely retains wires
• Clear, removable termination cap provides easy troubleshooting
• Terminate 4-pair 24 and 22 AWG 100 ohm solid unshielded twisted pair cable
• Accept 6 and 8-position modular plugs without damage
• White colored module base designates Category 3 performance
• Can be clearly identified with optional labels and icons
• Compatible with Mini-Com(TM) Modular Patch Panels, Faceplates, and Surface Mount Boxes

Tech Info

Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and Ro HS Compliant.
