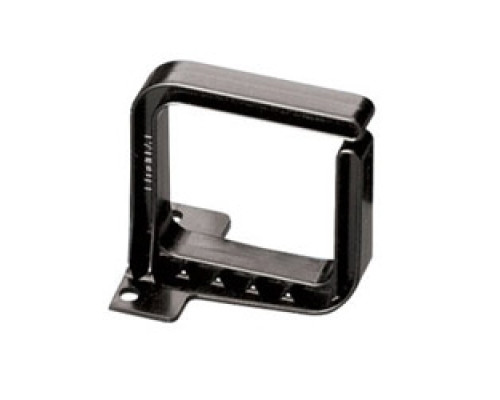

PANDUIT CMVDR2S Open-Access Vertical D-Ring 2 RU Black

Features

• Patented cable manager ring
• Standard EIA hole spacing allows product to be mounted to any standard rack
• Flexible material allows arm to rotate 90 so entire cable bundle can be inserted and removed
• Rounded edges prevent damage to cable insulation
• 1/4" mounting hole allows for a variety of screws to secure the D-ring to a surface
• Create a structured pathway and allows for open access

Specification Description

Cable Management Vertical D-Ring
Material: Flame Retardant Polycarbonate
Color: Black
Mounting Method: Screw Mount Holes Accept (2) 0.25 Inch (M6) Screws
Cable Capacity - 6A (0.289/0.298): 40
Cable Capacity - Cat 5e (0.187): 70
Cable Capacity - Cat 6 (0.250): 62
Cable Capacity - Fiber (3mm): 252
Fiber (3 mm) Cable Capacity: 252
Maximum Bundle Capacity: 2.40 Inch
Cable Capacity ScTP (0.250): 48
Cable Capacity UTP (0.187): 96
Dimension: 2.38 Inch Height x 3.30 Inch Width x 3.26 Inch Depth (60.45 mm x 83.82 mm x 82.80 mm)

Tech Info

RoHS
