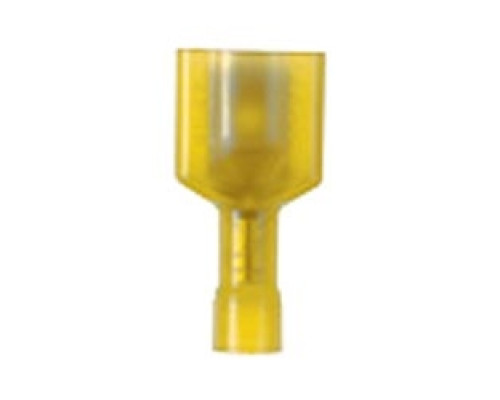

PANDUIT DNF10-250FIMB-D Disc M NylFl 12-10AWG .250x.032" BSPK500

Features

• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Fully insulated design provides protection from electrical shorts
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
• Coupler, male, and female parts sold separately

Tech Info

UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
