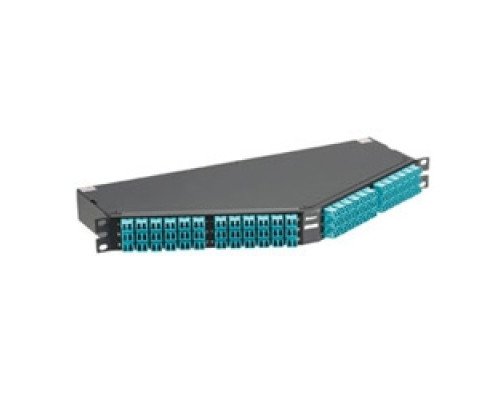

PANDUIT F1ASZN-9612-10S 12-Fiber HD OM4 FbrOpticAngldCassA EA

Applications

Cable Management in High-Density Network

Features

• Mounts to standard 19 Inch rack rails
• Low insertion loss of 0.5 dB maximum, per optimized cassette and 0.75 dB maximum per standard cassette; ensures system meets IEEE 802.3ae maximum channel loss specification of = 26dB
• Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme
• Connect together with high-density female MTP cable assemblies as interconnection network
• Significantly reduce installation time and labor by eliminating field connector termination
• Factory terminated, assembled and 100% tested
• Insertion loss data provided on every fiber cassette
• Lifetime traceability of test data to a Q.C. number
• 10Gig OM4 50/125 um fiber cassettes are tested per IEEE 802.3ae 10 GbE to support network transmission speeds up to 10 Gbps for link lengths up to 550 m at 850 nm; backward compatible with all 50/125 um (OM2) MPO or MTP system requirements
• 1RU-Angled 96-fiber S-type labeling; 10 G Bits OM4 12-fiber MTP to LC pre-terminated - standard polarity

Tech Info

Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, supports IEEE 802.3ae and ANSI T11.2, exceeds TIA/EIA-455-21A
