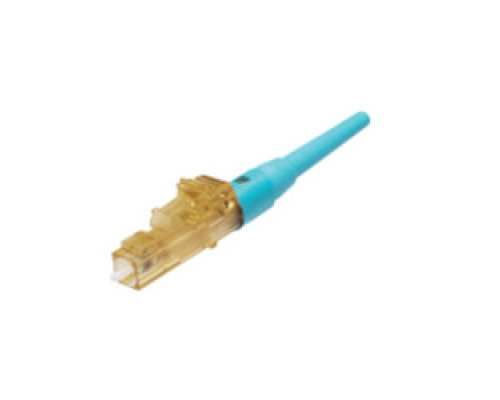

PANDUIT FLCSMCXAQY OptiCam LC Simplex Connector OM3/OM4/OM5 Aqua

Applications

Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect.

Features

• Factory pre-polished fiber stub endface - Eliminates inconsistent and time-consuming field polishing to deliver required optical performance; reduces termination time (less than half the time of field polish connectors) and the number of installation tools required
• Dual cam design with fiber and buffer clamps - Secures both the fiber and the buffer during the camming step to facilitate consistent termination results; reduces the termination time compared to conventional termination methods
• Allows up to two re-terminations to achieve optimum termination results; reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
• Translucent housing assembly - Facilitates inspection of the fiber termination quality; results in rapid installations, improved termination yields and lower installed costs
• Non-optical disconnect - Maintains data transmission under tensile loads for jacketed cable
• Mechanical cable retention - Consistently provides higher than industry standard cable retention; requires no adhesive, speeding installation
• Zirconia ceramic ferrules - Provide the highest durability for repeated matings

Tech Info

RoHS Compliant; TIA/EIA-604 FOCIS-10 compliant; exceeds TIA/EIA-568-D.3 requirements
