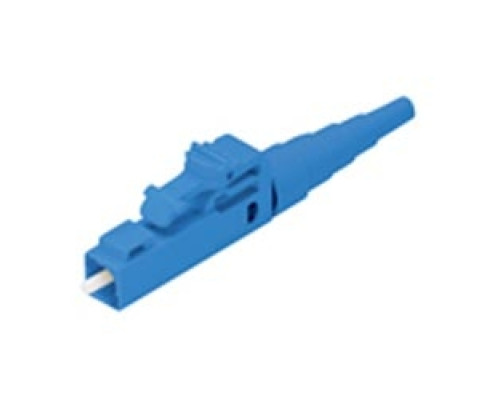

PANDUIT FLCSSBUY Field Polish LC Simplex Connector OS1/OS2 Blue

Applications

Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications for high-speed data transmissions.

Features

• Rear pivot latch design, robust construction - Longer beam reduces deflection during mating and unmating to reduce latch fatigue, leading to longer cycle life
• Anti-snag latch - Low profile latch resists cable snagging
• Wide "positive grip" thumb latch - multi-grooved, full body width thumb latch improves grip for better control during matings/unmatings; promotes fast, easy MACs (moves, adds, changes) in high-density applications
• Audible "click" upon successful mating - Provides user with a definitive signal of successful connector mating
• Field installable duplex clip with integrated polarity markers - Allows fast, easy field polarity changes without tools; quick identification of polarity
• One connector body design for both simplex and duplex applications - A single connector design is used for both simplex and duplex patch cords and inside the wall applications to simplify installation
• Protective cap locks onto connector latch with audible "click" - Protective cap automatically locks onto connector latch, completely covering connector end; prevents ferrule end face damage by providing protection from contamination and impact
• Anaerobic adhesive field installation - Simplifies and reduces installation time by 50% compared to heat cured epoxy terminations; curing oven/time not required
• Rugged body construction - Stable performance under side loads for improved reliability
• Independent free-floating ferrules - Ensures physical fiber contact for consistent low return loss, unlike unitary multi-fiber ferrule connectors
• 1.25mm Ceramic ferrules - Provide the highest durability for repeated matings

Tech Info

RoHS Compliant; TIA/EIA-604 FOCIS-10 compliant; exceeds TIA/EIA-568-D.3 requirements
