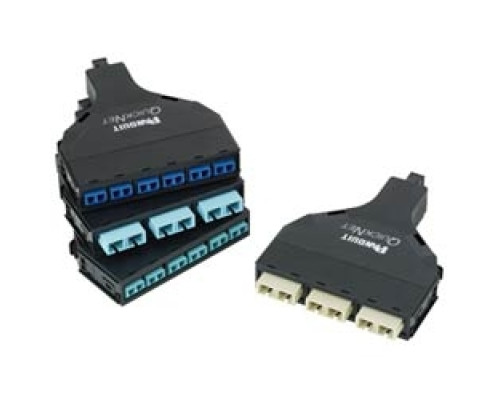

PANDUIT FQZO-12-10AS QuickNet SFQ MPO-LC Cassette OM4 12 Fiber Method A

Applications

Data Center Cabling, Cable Management

Features

• Allows system designers to tailor configuration, reach and breakout construction to application requirements to minimize waste, optimize cable management, speed deployment and improve flexibility and manageability for lower installation costs

Specification Description

Duplex Fiber Optic Cassette
Fiber Type: Multimode
Fiber Count: 12
Connector Type: LC Duplex to MPO Male
Material: Zirconia Ceramic
Sleeve Type: Split
Fiber Compatibility: OM4 10 GbE 50/125 um
Performance Level: Optimized
Return Loss: >26 dB
Insertion Loss: 0.5 dB Maximum
Polarity: Method A, Standard
Adapter Type: LC Duplex
Operating Temperature: 32 to 158 deg F (0 to 70 deg C)
Storage Temperature: -40 to 158 deg F (-40 to 70 deg C)
Installation Temperature: 32 to 140 deg F (0 to 60 deg C)
Dimension: 5.1 Inch Length x 4.2 Inch Width x 0.8 Inch Height (129 mm x 106 mm x 21 mm)

Tech Info

Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC.
