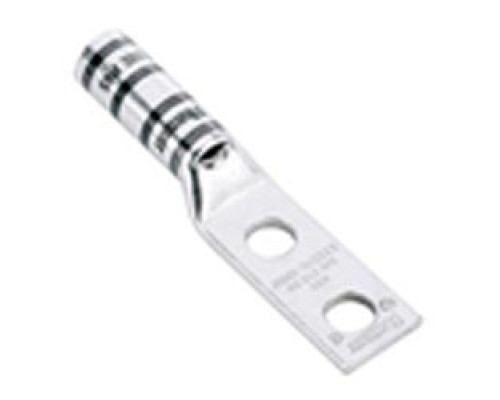

  • PANDUIT LCC6-38BW-L CuLug 2Hole #6AWG 3/8Stud .75PKG50

PANDUIT LCC6-38BW-L CuLug 2Hole #6AWG 3/8Stud .75PKG50

PANDUIT LCC6-38BW-L CuLug 2Hole #6AWG 3/8Stud .75PKG50
Model:
LCC6-38BW-L
SKU:
LCC6-38BW-L
Availability:
In Stock
Request Quote
  0 reviews
Delivery
Payment
Support
info@safsale.com

Features

  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Inspection window to visually assure full conductor insertion
  • Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
  • Tin-plated to inhibit corrosion
  • UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
  • UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
  • Tested by Telcordia - meets NEBS Level 3
  • Meets J-STD-607-A and TIA-942 requirements for network systems grounding applications
  • Available with NEMA hole sizes and spacing

Technical

Barrel
LONG
Bolt Hole
3/8 INCH
Gauge
6 AWG
Holes
2 HOLE
Inspection Hole
YES
Lug Material
COPPER
Type
STANDARD COMPRESSION
