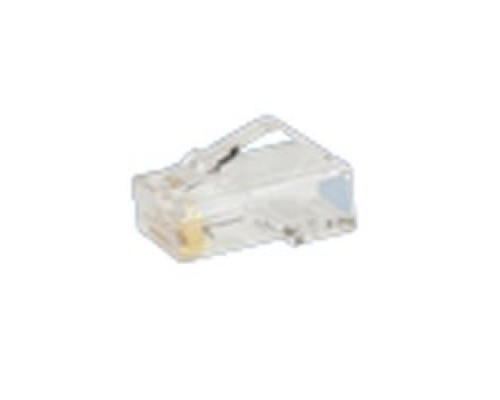

PANDUIT MP588-M RJ45 Cat 5e UTP Field Term Plug 24-26 AWG

Features

• Meet all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications
• Used in UTPCH series patch cords providing Category 5e performance
• Patented tangle free plug latch prevents snags and provides easy release saving time on frequent moves, adds, and changes
• Simplified termination requires no loading bar; guide ramp facilitates easy conductor insertion and termination
• Contacts plated with 50 microinches of gold
• Terminate 24 AWG, 100 ohm, stranded or solid conductor with max. conductor insulation diameter of .040"

Tech Info

Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant
