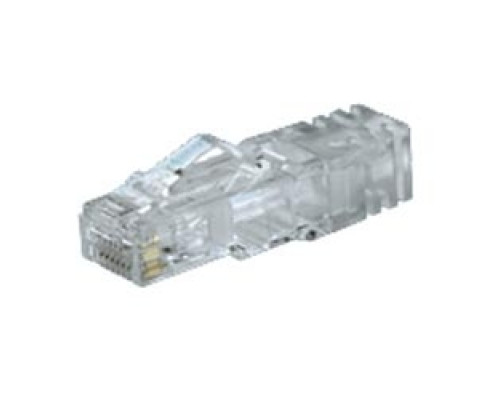

PANDUIT SP688-C RJ45 Cat 6 UTP Field Term Plug 23-24 AWG

Features

• Meets all applicable ANSI/TIA/EIA-968-A requirements and exceeds IEC 60603-7 specifications
• Patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes
• Color-coded, keyed jack modules mechanically and visually distinguish connections to prevent unintentional mating with unlike keyed or non-keyed modular plugs accommodating more discrete networks
• Slender strain relief boot provides easy access in high density applications
• Integral pair manager optimizes performance and consistency by reducing untwist at plug
• Contacts plated with 50 microinches of gold
• Terminates 24 AWG, 100 ohm, stranded or solid conductor with max. conductor insulation diameter of .041"

Tech Info

Exceeds ANSI/TIA Category 6 and ISO Class E performance requirements when properly terminated to Panduit Category 6 UTP copper cable, Meets ANSI/TIA-1096-A, IEC 60603-7, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant
