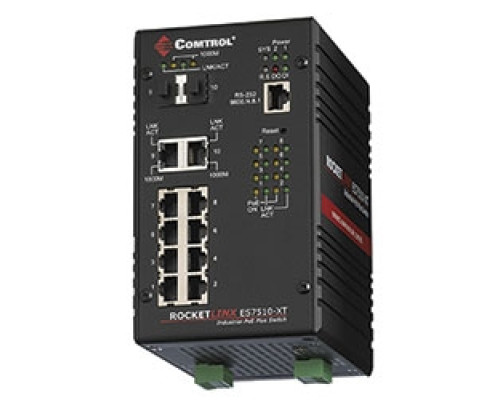

PEPPERL+FUCHS COMTROL INC 32046-3 Managed Power over Ethernet Industrial switch, eight PoE Plus ports and two Gigabit ports, IEEE 802.3af and IEEE 802.3at compliant, extended operating temperature range.

Applications

The Comtrol RocketLinx ES7510-XT managed industrial PoE Plus switch is designed to meet the high power and advanced management needs of critical traffic applications such as real-time IP video surveillance and wireless communication utilizing outdoor rated IP cameras and high power IEEE 802.11 access points. Featuring a rugged design for harsh environments, intuitive web, CLI, SNMP management options, power scheduling and eight fully compliant IEEE 802.3at PoE injector ports, the ES7510-XT is easily installed in industrial settings and traffic cabinets supporting even the most power intensive devices such as IP cameras with heaters and pan/tilt/zoom controls.

Features

• Integrate IP cameras, access points and other PoE devices
• Eight 10/100BASE-TX PoE Plus ports and two Gigabit RJ45/SFP combo ports featuring Digital Diagnostic Monitoring (DDM)
• PoE ports support both IEEE 802.3af (15.4W) and the latest high power IEEE 802.3at standards (30W)
• Easy setup and administration via Netvision application, web page or Cisco-like command line interfaces
• Advanced redundant ring support with 5ms recovery time, for up to 4 x 100M rings plus two Gigabit uplink rings
• Advanced security features include Port Security, Access IP List, HTTPS and SSH login
• SNMP and IEEE 802.1AB LLDP for network management
• Tag-VLAN supporting multiple VLAN traffic isolation
• LACP port trunking for bandwidth aggregation to support video surveillance
• Redundant DC power inputs and multiple event relay output for advanced device alarm control
• Extended operating temperature -40 to 75C
• NEMA TS2 certified
• RoHS2 compliant under CE
• IPv6 support
