Applications

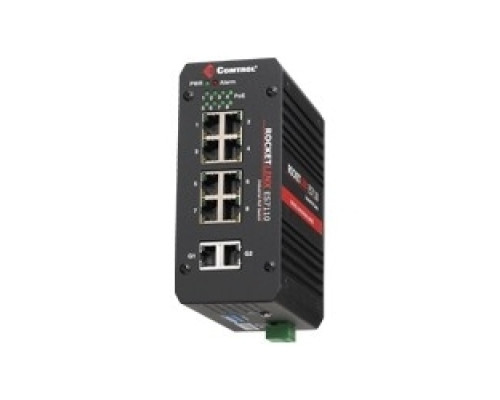

The RocketLinx ES7110-VB is an IEEE 802.3af compliant PoE switch designed for connecting a wide range of industrial PoE equipment such as IP surveillance cameras, wireless access points, point-of-sale systems, and other devices utilizing 12/24V vehicle power sources or 24V standard industrial power.
Features
- 10-Port Industrial PoE Plus unmanaged switch
- Voltage boost technology supporting 12/24 V DC power sources for transportation and industrial applications
- Eight 10/100BASE-TX PoE injector ports and two 10/100/1000BASE-TX uplink ports
- Plug-and-playged PoE switch
- IEEE 802.3af compliant PoE with a total output power budget of 65W (15.4W maximum on each port)
- Two Gigabit uplink ports supporting high bandwidth applications such as IP surveillance
- QoS support for optimizing video and VoIP str
- Extended operating temperature range(-25C to +60C)
- Alarm Relay for failure and event notification
- Industrial-grade aluminum IP30 housing
- DIN rail/wall-mount installation
- UL Listed
Technical
Type
ETHERNET SWITCH (UNMANAGED)
