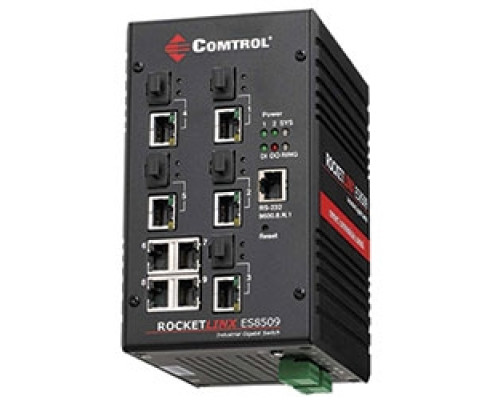

PEPPERL+FUCHS COMTROL INC 32065-4 Managed industrial Ethernet switch, nine Gigabit ports and five Gigabit combo ports, aluminum IP31 housing and NEMA TS2 certified

Features

• 9-Port fully managed industrial grade Gigabit switch
• Nine Gigabit ports: 4 10/100/1000BASE-TX RJ45 ports and 5 Gigabit combo (RJ45/SFP 10/100/1000BASE-TX, 100BASE-FX, 1000BASE-X) ports
• 32G switch fabric, 8K MAC address ensuring high quality data trsmission
• Advanced features including: private VLAN, VLAN, GVRP, QoS, IGMP snooping V1/V2/V3, rate control, port trunking, LACP, online multi-port mirroring
• Comprehensive security features supporting IP security, port security, DHCP server, IP and M binding, IEEE 802.1x network access control
• Advanced network redundancy, multiple Gigabit rings (recovery time <5ms), STP, RSTP, MSTP, and Rapid Dual Homing
• Multiple management methods; Command Line Interface (CLI) using the console port or TelnetSH, Web (HTTP/HTTPS), or NetVision
• Event notification by email, SNMP trap, syslog, digital input and relay output
• Dual redundant 10.5 - 60 V DC power inputs for enhanced reliability
• High Temp Ethernet Switch with extended operating temperature r (-40C to 75C)
• NEMA TS2 certified
• Rigid aluminum IP31 housing, excellent heat dispersion, DIN rail/wall-mount installation
• IPv6 support

Specification Description

Network Interface: 10/100/1000BASE-TX; 100BASE-FX; 1000BASE SX/LX/LHX/XD/ZX Gigabit fiber
Connector Type: 4 - RJ45, 5 - RJ45/SFP combo
Enclosure: IP31 grade aluminum metal case, Drop-waterproof and dustproof
Installation Method: DIN rail
LED Indicators: Power 1, Power 2, system status, ring, digital input, digital output, RJ45 link/activity and link speed, SFP port link/activity and link speed
Digital Input (DI): One DI, 4-pin screw terminal block
Digital Output (DO): One DO (dry relay output), 4-pin screw terminal block
Serial Console Port: One RJ45 RS-232 (TXD, RXD, signal GND), baud rate: 9600bps, data bits: 8, parity: none, stop bits: 1, flow control: none
Thermal Monitoring: Embedded board-level thermal detector for main-chip temperature monitoring
Dimensions: 5.0" x 6.3" x 3.7"
Product Weight: 2.9 lbs, 1.32 kg
Number of Ports: Nine: 4 - RJ45 and 5 combo (RJ45/SFP)
RJ45: 10/100/1000BASE-TX Auto MDI/MDIX, Auto-negotiation (speed/duplex mode)
SFP (Optional): 100BASE-FX fiber, 1000BASE-SX/LX/LHX/XD/ZX, Auto MDI/MDIX, Auto-negotiation (speed/duplex mode)
Cable Type: CAT-3, CAT-4, CAT-5, CAT-5e, 6 (UTP or STP)
Link Distances: RJ45: 100 Meters
SFP: depends on model: Single-Mode: 30KM, Multimode: 2KM
Port Alarm Relay: Yes
Transfer Packet Size: 64 bytes to 1632 bytes (with 1522 VLAN Tag)
