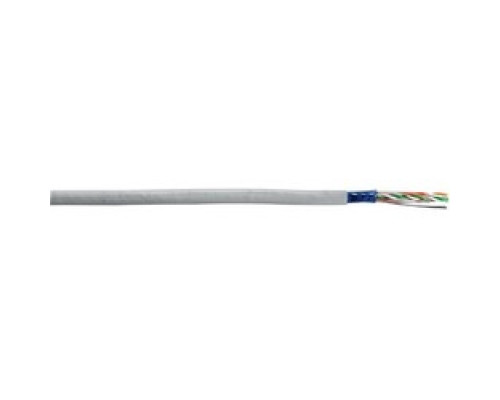

Model:
2131611E, CMP-00424GEN-5E-S-06SKU:
2131611E, CMP-00424GEN-5E-S-06Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features
- Features: And Benefits
- Foil shield reduces electromagnetic
- interference (EMI) for optimal
- performance
- TRU-Mark print legend contains footage markings from 1000’ to 0’
- Made in U.S.A.
- Applications:
- 1000 BASE-T (Gigabit Ethernet)
- E52/155 Mbps ATM
- E100/10 BASE-T (IEEE 802.3)
- IEEE 802.3af DTE Power (PoE)
- IEEE 802.3at for PoE Plus
- T1
- Voice
Specification Description
Conductors: 24 AWG solid bare annealed copper
Insulation: Non-Plenum: Polyolefin; Plenum: Fluoropolymer
Color Code: Pair 1: Blue-White/Blue; Pair 2: Orange-White/Orange; Pair 3: Green-White/Green; Pair 4: Brown-White/Brown
Core Tape: Polyester
Drain Wire: 26 AWG stranded (7/34) solid tinned copper
Shield: Polyester-backed aluminum foil (aluminum side in)
Jacket: Flame-Retardant PVC
Tech Info
Standard Compliances
ANSI/TIA 568-C.2
ANSI/ICEA S-90-661 (Category 5e)
NEC/CEC Type CMR (UL 1666) for Non-Plenum
NEC/CEC Type CMP (NFPA 262) for Plenum
RoHS Compliant Directive 2002/95/EC
UL 444
Technical
Category
CATEGORY 5E
Conductor Size
24 AWG (AMERICAN WIRE GAUGE)
Conductor Type
SOLID
Conductor/Pair Count
4 PAIR
Fire Rating
PLENUM
Jacket Color
BLUE
Shielded
F/UTP - FOILED/UNSHIELDED TWISTED PAIR
Type
DATA
