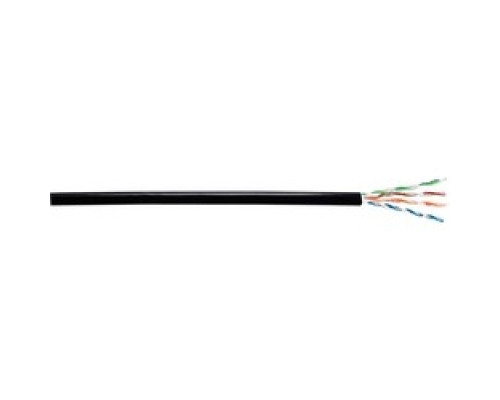

PRYSMIAN GROUP 5136101 24-4P UTP-CM Solid Bare Copper CAT 5E OUTDOOR RATED, Aluminum ARMOR BLACK

Features

• Features: And Benefits
• Protects against environmental
• elements that can cause electrical
• performance failures
• TRU-Mark print legend contains footage markings from 1000’ to 0’
• Prevents moisture migration
• Made in U.S.A.
• Applications:
• Armored: aerial, duct and buried installations
• Non-armored design is recommended for duct installation
• 1000 BASE-T (Gigabit Ethernet)
• 52/155 Mbps ATM
• 100/10 BASE-T (IEEE 802.3)
• Voice/T1

Specification Description

Conductors: 24 AWG solid bare annealed copper
Insulation: Polyolefin
Color Code: Pair 1: Blue-White/Blue; Pair 2: Orange-White/Orange; Pair 3: Green-White/Green; Pair 4: Brown-White/Brown
Optional Armor: Aluminum applied helically (inner jacket is used with this construction); Armor diameter 12 mm
Flooding Compound: Waterproof gel
Jacket: UV- and Abrasion-Resistant Polyethylene

Tech Info

Standard Compliances
ANSI/TIA 568-C.2
ISO 11801 (Category 5e)
ANSI/ICEA S-90-661 (Category 5e)
Telcordia (Bellcore) Specification
GR-421-CORE Water Penetration
Requirements
NEMA WC63.1 (Category 5e)
RoHS Compliant Directive 2002/95/EC
