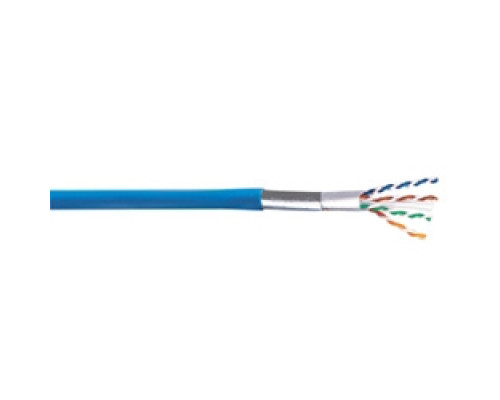

PRYSMIAN GROUP 7131586 23-4P STP-CMP Solid Bare Copper Category 6A FEP/FRPVC Blue Jacket Reel GS 10,000 Shielded

Features

• Features: And Benefits
• A shielded or foiled-twisted pair (F/UTP) cable, requiring grounding and providing industry-leading protection from external cable noise sources, also known as alien crosstalk (PSANEXT and PSAACRF)
• The internal separator optimizes internal pair geometry to yield superior electrical performance and maintain flexibility. This unique cross-web stabilizes each pair to create a smaller, round cable profile
• TRU-Mark print legend contains footage markings from 1000 to 0
• Made in U.S.A.
• Applications:
• IEEE 802.3 10G BASE-T, 100 BASE-T
• 100 BASE-TX, 10 BASE-T, 1000 BASE-TX
• 155 Mb/s ATM
• IEEE 802.3af for PoE
• IEEE 802.3at for PoE Plus
• ANSI X3.263: 100Mb/s

Specification Description

Conductors: 23 AWG solid bare annealed copper
Insulation: Non-Plenum: Polyolefin; Plenum: Fluoropolymer
Color Code: Pair 1: Blue-White; Pair 2: Orange-White; Pair 3: Green-White; Pair 4: Brown-White
Separator: Cross-Web
Jacket: Non-Plenum: Flame-Retardant PVC; Plenum: Low-Smoke, Flame-Retardant PVC

Tech Info

Standard Compliances
ANSI/TIA 568-C.2
NEC/CEC Type CMR (UL 1666) for Non-Plenum
NEC/CEC Type CMP (NFPA 262) for Plenum
RoHS Compliant Directive 2002/95/EC
UL 444
