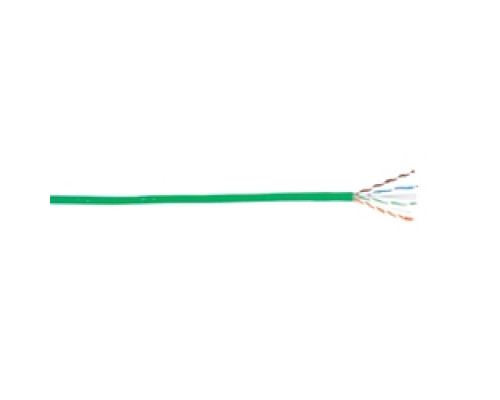

PRYSMIAN GROUP 7133806-17F 23-4P UTP-CMR Solid Bare Copper Category 6 PO/0H Green Jacket Boxes GenSpeed 6 17-FREE

Features

• Features: And Benefits
• No halogens
• Less toxic
• More environmentally friendly
• Increased flexibility for easy installation
• Unique tape design engineered for consistent electrical performance
• Performance guaranteed to 350 MHz
• TRU-Mark print legend contains footage markings from 1000 to 0
• Third-party verified for guaranteed performance
• Made in U.S.A.
• Applications:
• IEEE 802.3: 1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T
• ANSI/TIA/EIA 854: 1000 BASE-TX
• 155 Mp/s, 1.2 Gb/s ATM
• ANSI X3.263: 100 Mb/s
• IEEE 802.3af DTE Power (PoE)
• IEEE 802.3at for PoE Plus
• Digital Video
• Broadband and Baseband Analog Video

Specification Description

Conductors: 23 AWG solid bare annealed copper
Insulation: Non-Plenum: Polyolefin
Color Code: Pair 1: Blue-White/Blue; Pair 2: Orange-White/Orange; Pair 3: Green-White/Green; Pair 4: Brown-White/Brown
Separator: Divider
Jacket: Non-Plenum: Zero-Halogen Polyolefin

Tech Info

Standard Compliances
ANSI/TIA 568-C.2
ANSI/TIA 862 (Building Automation)
ISO/IEC 11801 Ed. 2.0 (Class E)
ICEA S-102-700 (Category 6)
NEC/CEC Type CMR (UL 1666) for Non-Plenum
RoHS Compliant Directive 2002/95/EC
UL 444
IEC 60754-2
