Model:
7133849, CM-00423GEN-6A-06SKU:
7133849, CM-00423GEN-6A-06Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Specification Description

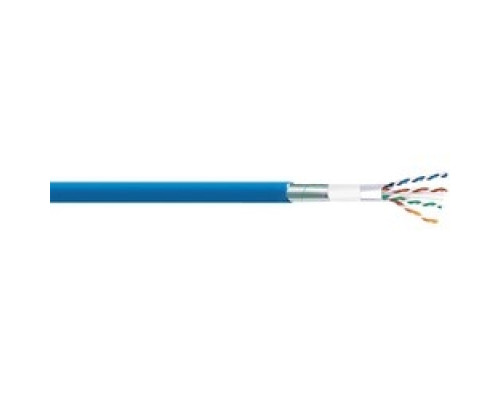

Conductors: 23 AWG solid bare annealed copper
Insulation: Non-Plenum: Polyolefin; Plenum: Fluoropolymer
Color Code: Pair 1: Blue-White; Pair 2: Orange-White; Pair 3: Green-White; Pair 4: Brown-White
Separator: Cross-Web
Jacket: Non-Plenum: Flame-Retardant PVC; Plenum: Low-Smoke, Flame-Retardant PVC
Tech Info
Standard Compliances
ANSI/TIA 568-C.2
NEC/CEC Type CMR (6AL1666) for Non-Plenum
NEC/CEC Type CMP (NFPA262) for Plenum
RoHS Compliant Directive 2002/95/EC
UL 444
Technical
Category
CATEGORY 6A
Conductor Size
23 AWG (AMERICAN WIRE GAUGE)
Conductor Type
SOLID
Conductor/Pair Count
4 PAIR
Fire Rating
RISER
Jacket Color
BLUE
Shielded
U/UTP - UNSHIELDED TWISTED PAIR
Type
DATA
