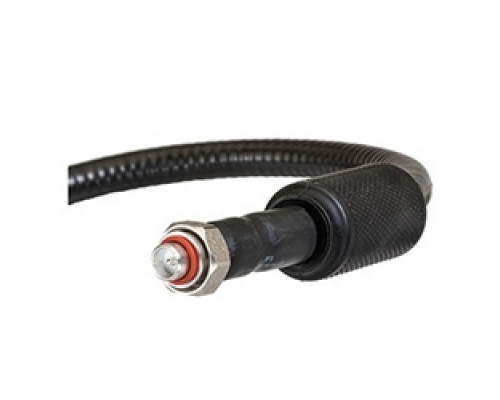

RFS TECHNOLOGIES INC 7M7ML12-030FFP CELLFLEX Factory-Fit Jumper Assembly, 4.1-9.5 DIN Male / N Male with Weatherproofing System, 8ft

Features

• Stable VSWR, consistent intermodulation
• performance
• Reliable network performance, reduces the
• number of dropped calls and avoids revenue loss.
• Waterproof to IP 68
• No downtime risk, secures revenue
• Jumper label is serialized
• Ensures traceability
• Halogen free "J" jacket type
• Usable in the majority of applications
• Compliant to RoHS (EU) and CRoHS (China)
• Usable on a global basis

Specification Description

Cable Type 1/2" Foam
Connector A 4.1-9.5 DIN Male
Connector B N Male
Jumper Type Factory-Fit (Soldered)
Length, m (ft) 2.4 (8)
Frequency Band(s), MHz 698-960, 1700-2200, 2305-2320,
2345-2360, 2496-2690
Performance Specification:
Return Loss, dB (VSWR) 26 (1.105:1)
Intermodulation, 3rd Order, dBc -155
Minimum Bend Radius, mm (in) 125 (5)
Weatherproofing Material EPDM rubber
Sealing Class IP68
UV Resistance 1120W/1000H
