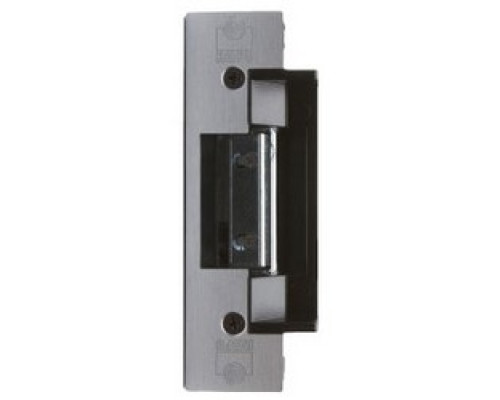

Model:
1702-08G US28, CS156071SKU:
1702-08G US28, CS156071Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features
- Anodized Aluminum ANSI Size Faceplate
- Frame Type Hollow Metal or Aluminum
- Corrosion Resistant Case and Moving Parts
- Cycle Test 500000 Cycles
- Keeper Depth 1/2 Inch Maximum Latch Projection Possible with 1/8 Inch Door/Frame Clearance 5/8 Inch
- ReversibNon-Handed
- Electric Strikes for Use with Mortise and Cylindrical Locksets
- For Commercial and Residential, New or Retrofit Uses
Technical
Finish
US28 SATIN ANODIZED ALUMINUM
Frame Material
ALUMINUM, HOLLOW METAL, OR WOOD
Locking State
FAIL-SECURE (POWER TO UNLOCK)
Max Latch Length - Inch
MAXIMUM 5/8 INCH THROW
Mounting
FOR CENTERLINE INSTALLATIONS
Product Type
FOR USE WITH CYLINDRICAL LOCK
Pull Strength - Lbs
1000 - 1500 LBS.
Sales Category
ELECTRIC STRIKE
Voltage and Duty CONT
24 VOLT DC CONTINUOUS DUTY
Voltage and Duty INT
24 VOLT DC INTERMITTENT DUTY
Warranty
3 YEAR LIMITED
