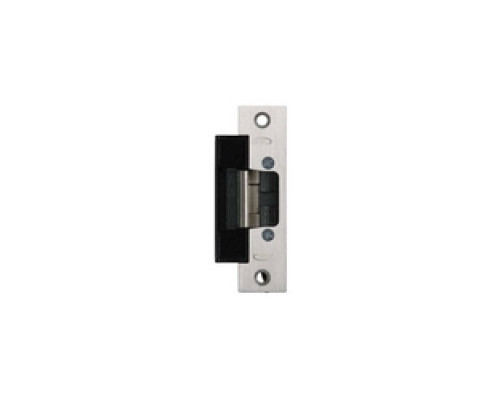

Model:
L6514 X 32D, CS321058SKU:
L6514 X 32D, CS321058Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features
- Field-selectable voltage 12/24 V DC and 12-24 V AC (375mA max at 12 V DC and 280mA - 565mA max at 12-24 V AC )
- Accommodates 3/4" (Standard - S65) and 1/2" or 5/8" (Low Profile - L65) latch projection
- Depth: 1-3/16" (Standard - S65) and 1-1/16" (Lowrofile - L65)
- Field-selectable mode (fail-safe & fail-secure)
- 1/4" horizontal adjustment
- Plug-in wire connectors
- Non-handed - for use with right- and left-handed doors
- Up to 1500lbf Static and 70 ft-lb Dynamic
- UL 1034 burglary-resistantptional latch and keeper monitor available (LMKM)
Technical
Finish
US32D SATIN STAINLESS STEEL
Frame Material
HOLLOW METAL
Locking State
SELECTABLE FS OR FSE
Max Latch Length - Inch
MAXIMUM 5/8 INCH THROW
Mounting
FOR CENTERLINE INSTALLATIONS
Product Type
FOR USE WITH CYLINDRICAL LOCK
Pull Strength - Lbs
1000 - 1500 LBS.
Sales Category
ELECTRIC STRIKE
UL
UL BURGLARY RESISTANCE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
SELECTABLE 12/24V AC/DC INT
Warranty
3 YEAR LIMITED
