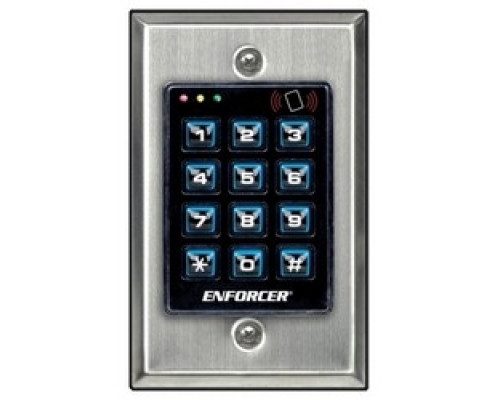

Features
- Built-In Proximity Card Reader
- 3 Relay Output
- Up to 1000 Possible User Codes (000 to 999) and/or Proximity Card
- Up to 50 (01 to 50) Possible Temporary Visitor Codes, which Can be Programmed for One-Time or Limited Time Use
- Tamper Output: NC Dry Conta, 50 Milliampere at 24 Volt DC Maximum
- Keypad Illuminates When a Button is Pressed
- Backlight Can be Programmed for Full or Auto in Standby Mode
- Mounts to a Standard Single-Gang Back Box
- All Features are Programmed Directly from the Keypad: No Need foan External Programmer
- EEPROM Memory Protects Programmed Information in Case of Power Loss
- Duress Code Signals a Silent Alarm if an Authorized User is Forced to Open the Door Under Duress
- Egress Input Lets Users Exit the Premises without Key-Ing in th Code
- Door Sensor Input for Anti-Tailgating Operation
- Interlocking Input for Connecting to a Second Keypad
- Keypad Active or Alarm Output Selectable Via Jumper
- Door-Forced-Open Warning
- Door Open Warning and Alarm
- Lifetime Limited Warranty
- RoHS Comp
Technical
Product Type
KEYPAD
Sales Category
ELECTRIC READERS AND KEYPAD
