Model:
463U, CS492643
SKU:
463U, CS492643
Availability:
In Stock
documents:
Spec Sheet
Request Quote
  0 reviews

Features

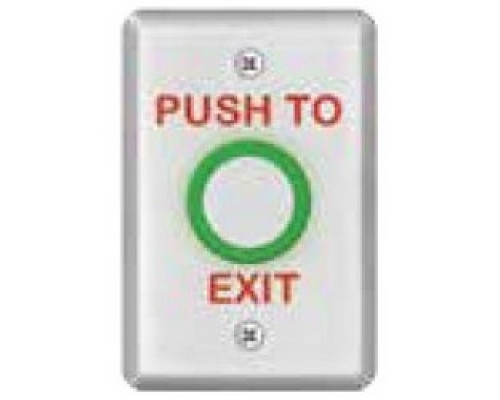

  • The SDC 460 Series is a Heavy Duty, Vandal-resistant Exit Switch Designed for Harsh Indoor or Outdoor Environments
  • The Stainless Steel Piezoelectric Technology is also Ideal for High Traffic Applications
  • The Switch Assembly Design Ensures Superior Performance in Virtually any Environment
  • Vandal-resistant Stainless Steel Piezoelectric Button and Faceplate
  • No Moving Parts
  • Billion Cycle Button Technology
  • Bi-Color Status Indicator, Red and Green
  • Integrated Timer, Adjustable 1-30 Seconds or Toggle On/
  • Made in USA

Technical

Amp Rating
3
Button Color
POLISHED CHROME
Button Illumination
ILLUMINATED
Button Size
1-1/2" DIAMETER
Button Text
PUSH TO EXIT
Circuit State
DOUBLE THROW (SELECT NO OR NC)
Faceplate Size
APPROX. 2-3/4" X 4-1/2
Finish
US32D SATIN STAINLESS STEEL
Mounting
SINGLE-GANG ELECTRICAL BOX
Product Type
PUSHBUTTON
Sales Category
ELECTRIC PUSHBUTTON SWITCH
Switch State
TIMER
Switch Type
DOUBLE-POLE, DOUBLE THROW
