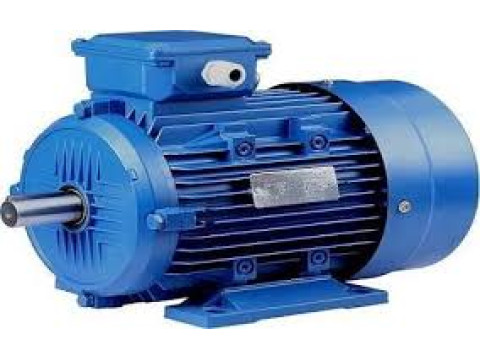

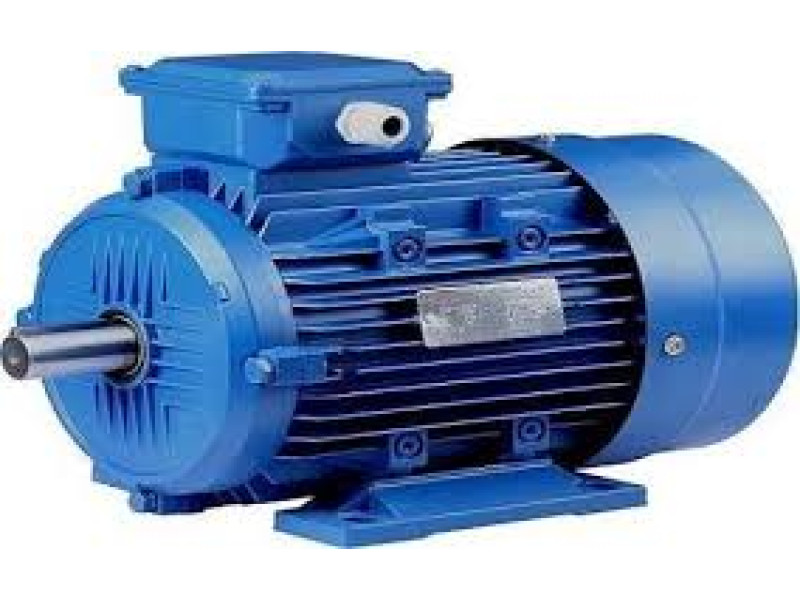

Understanding Asynchronous Motors: Types and Operation

An asynchronous motor, commonly known as an induction motor, is an electric machine that converts AC electrical energy into mechanical energy. Unlike synchronous motors, the rotor speed in an asynchronous motor is always lower than the rotating magnetic field in the stator.

Asynchronous motors are the most widely used type of electric motor, accounting for nearly 90% of all industrial and household motors due to their simple design, reliability, and cost-effectiveness.

Basic Structure of an Asynchronous Motor

The key components of an asynchronous motor include:

1️⃣ Stator – A stationary core made of laminated steel plates with slots for winding coils
2️⃣ Rotor – A rotating part, either squirrel-cage or wound rotor type
3️⃣ Bearings, Shaft, and Fan – For mechanical support, cooling, and efficient operation

Unlike synchronous motors, asynchronous motors lack a dedicated excitation winding on the rotor, which simplifies design but reduces starting torque.

Working Principle of an Asynchronous Motor

The operation of an asynchronous motor follows these steps:

1️⃣ When AC voltage is applied to the stator windings, a rotating magnetic field (RMF) is generated
2️⃣ The RMF induces an electromotive force (EMF) in the rotor
3️⃣ The induced EMF creates current flow in the rotor windings
4️⃣ The interaction between the RMF and rotor currents produces torque
5️⃣ The rotor starts moving and always lags behind the stator field, creating slip

📌 Slip Formula:

$$s = \frac{N_s - N_r}{N_s} \times 100\%$$

Where:

• $s$ = Slip (%)
• $N_s$ = Synchronous speed (RPM)
• $N_r$ = Rotor speed (RPM)

Slip is essential for motor operation. At startup, slip = 1 (100%), and during normal operation, slip is typically 1-8% depending on load conditions.

Single-Phase vs. Three-Phase Asynchronous Motors

Asynchronous motors are classified based on their power supply and winding configurations.

1️⃣ Single-Phase Induction Motors

✔ Operate on single-phase 120V or 240V power
✔ Require an auxiliary winding or capacitor for starting
✔ Commonly used in household appliances

📌 Working Principle:

• The main winding creates a pulsating magnetic field, not a rotating one
• A starting capacitor introduces phase shift to create a rotational effect
• Once running, the motor can operate on the main winding alone

📌 Limitations:
❌ Lower starting torque
❌ Lower efficiency
❌ Not suitable for high-power applications

2️⃣ Three-Phase Induction Motors

✔ Operate on three-phase 208V, 480V, or higher power
✔ Self-starting due to balanced RMF
✔ Commonly used in industrial applications

📌 Advantages:
✔ High efficiency
✔ Higher torque
✔ Requires no additional starting mechanism

📌 Configuration Methods:
✔ Star (Wye) Connection – Used for high-load starting
✔ Delta Connection – Provides higher running power

📌 Applications:
✔ Industrial machinery
✔ Pumps, compressors, and HVAC systems
✔ Conveyor belts and fans

Types of Asynchronous Motor Rotors

The rotor type significantly impacts the motor's characteristics and performance.

1️⃣ Squirrel Cage Rotor (Short-Circuited Rotor)

✔ Most common and widely used type
✔ Simple "cage-like" rotor made of aluminum or copper bars
✔ Reliable, maintenance-free, and durable

📌 Working Principle:

• When the RMF from the stator cuts through the rotor bars, currents are induced
• The interaction between RMF and rotor currents generates torque
• The rotor starts spinning with slip

📌 Advantages:
✔ Cost-effective and easy to manufacture
✔ Self-starting with good efficiency
✔ Low maintenance due to absence of brushes

📌 Limitations:
❌ Lower starting torque
❌ Fixed-speed operation without an inverter

📌 Applications:
✔ Fans, pumps, and compressors
✔ Household appliances
✔ Industrial conveyor belts

2️⃣ Wound Rotor (Slip Ring Rotor)

✔ Features a three-phase winding on the rotor
✔ Connected to external resistance through slip rings
✔ Provides better speed control and higher starting torque

📌 Working Principle:

• When the stator RMF induces current in the rotor windings, an external resistance is used to control torque and current
• Once the motor reaches normal operating speed, the rotor windings are shorted

📌 Advantages:
✔ High starting torque with controlled current
✔ Smooth speed adjustment
✔ Suitable for heavy-load applications

📌 Limitations:
❌ More complex design
❌ Higher cost than squirrel cage motors
❌ Requires regular maintenance

📌 Applications:
✔ Cranes and elevators
✔ Rolling mills and mining equipment
✔ Large industrial machines

Comparison of Squirrel Cage vs. Wound Rotor Motors

Choosing the Right Asynchronous Motor

📌 For Household Appliances
✔ Single-phase squirrel cage motors
✔ Common in washing machines, refrigerators, fans

📌 For Industrial Use
✔ Three-phase squirrel cage motors for general machinery
✔ Wound rotor motors for high starting torque applications

📌 For Heavy-Duty Applications
✔ Slip-ring induction motors for cranes, hoists, and large fans

FAQ: Asynchronous Motors

1️⃣ Why is it called an asynchronous motor?

✅ Because the rotor speed is always less than the synchronous speed due to slip.

2️⃣ How do I control the speed of an induction motor?

✅ Variable Frequency Drives (VFDs) can be used to adjust the frequency of the power supply, effectively controlling speed.

3️⃣ Why are squirrel cage motors so popular?

✅ They are reliable, low-maintenance, and cost-effective, making them ideal for general-purpose industrial and household applications.

4️⃣ Can a three-phase motor run on single-phase power?

❌ Not directly. A phase converter or capacitor-start method is needed.

5️⃣ Are induction motors more efficient than DC motors?

✅ Yes, for large-scale industrial use. However, DC motors provide better speed control for applications like robotics and EVs.

Final Thoughts on Asynchronous Motors

Asynchronous motors are the backbone of modern industry, offering cost-effective, efficient, and reliable performance.

🔹 Key Takeaways:
✔ Squirrel cage motors are widely used due to simplicity and durability
✔ Wound rotor motors are ideal for heavy-load applications requiring speed control
✔ Single-phase motors are best for household appliances
✔ Three-phase motors dominate industrial applications

⚡ Need an efficient motor for your application? Choose the right asynchronous motor based on your load, speed, and power needs!
