Installing a differential breaker—also known as a combined overcurrent and residual-current device—at the service entrance is technically possible, but is it advisable for your home’s electrical system? Let’s break it down.
How Does a Differential Breaker Work?
A differential breaker is designed to disconnect an electrical circuit when either the current exceeds a predetermined limit (due to overloads or short circuits) or when a leakage current is detected (an imbalance between incoming and outgoing current). Essentially, it combines the functions of a standard circuit breaker with those of a residual-current device (RCD or GFCI).
The Role of the Service Entrance

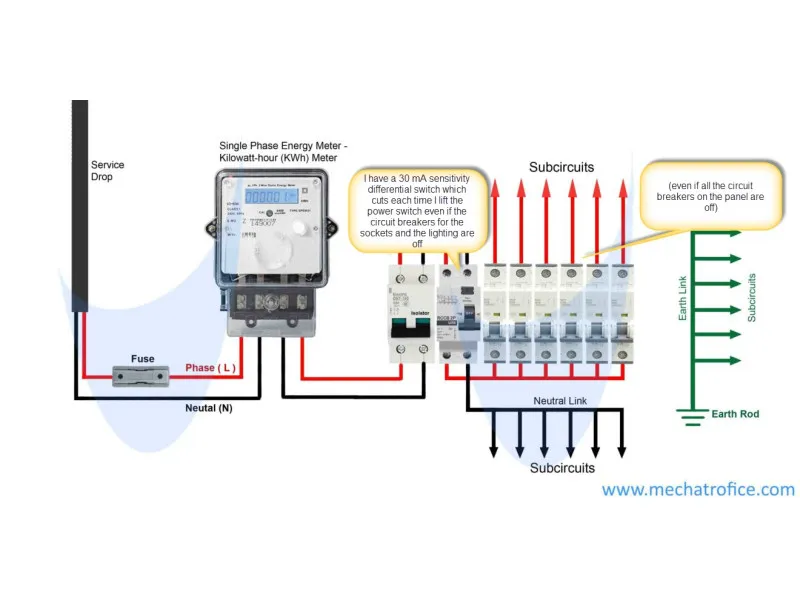

The service entrance is where electricity enters your home from the transformer. In many residential systems, the neutral is grounded at the transformer side, and sometimes a repeat grounding is performed upon entry to the building. Bonding the neutral (often referred to as “zero”) and the protective earth (PE) at the service entrance is common practice.
Why Not Install a Differential Breaker at the Service Entrance?
-
Summing Leakage Currents:
When a differential breaker is placed at the service entrance, it monitors leakage currents across all circuits simultaneously. Even under normal operation, small leakage currents may exist. These small, cumulative leakages can sometimes exceed the device's trip threshold, especially if the connected circuits have minor issues or loose connections. As a result, the breaker may trip unnecessarily, causing widespread power loss in your home. -
Protection vs. Practicality:
The primary purpose of a differential breaker is to protect against hazardous leakage currents and to interrupt power before a shock hazard occurs. Installing one at the entrance might protect the entire system, but if a fault occurs on one circuit, the entire house will lose power, making it difficult to pinpoint the exact problem. This loss of localization complicates troubleshooting and can be inconvenient during maintenance. -
Cost and Complexity:
Differential breakers are more expensive than standard circuit breakers. Installing one at the service entrance increases installation costs without providing proportional benefits. In most cases, it’s more effective to use standard circuit breakers (for overload protection) combined with individual RCDs (for residual current protection) on specific circuits, especially in areas where human safety is paramount.
Best Practices
-
Use Separate Devices:
For optimal safety and system functionality, use standard circuit breakers for overcurrent protection and install RCDs on individual circuits or groups of circuits. This approach localizes any fault, reducing unnecessary power outages. -
Maintain Compliance:
Follow the guidelines set forth by the National Electrical Code (NEC) when designing your home’s electrical system. Proper installation at the service entrance should be limited to disconnecting the entire system during emergencies or maintenance—not for routine residual current protection. -
Regular Inspection:
Ensure that all connections, especially in combined PEN (Protective Earth and Neutral) conductors, are secure and intact. Regular maintenance helps prevent potential issues that might lead to hazardous conditions.
Conclusion
While it is technically feasible to install a differential breaker at the service entrance, doing so is generally not advisable. Such an installation could lead to nuisance tripping by summing leakage currents from multiple circuits and complicate fault isolation. For most residential systems, it’s best to employ standard circuit breakers and dedicated RCDs on specific circuits to achieve both safety and efficient troubleshooting.
