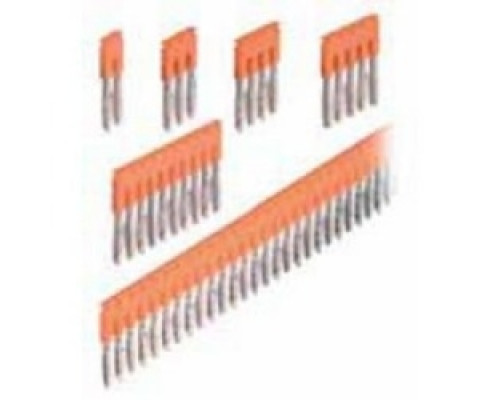

TE CONNECTIVITY 1SNK905310R0000 Jumper Bar, 10-Poles, 32 A, Polyamide, Orange, Contact Current Rating Max. : 32 A, Screwless, 5.2 mm

Applications

For Terminal Blocks

Features

• Use of 50 poles jumper bars or cut jumper bars is not allowed in explosive atmospheres
• Jumper bar with cut extremities: when mounted on feed-through or ground terminal blocks, the circuit separator CS must be installed on the cut side
• Jumper bar with cut poles: for alternated jumpering between terminal blocks
• Sub-function: Screwless
• Screwless mounting
• Pre-cut poles for alternated jumpering between terminal blocks
• Insulated
• Positive locking

Specification Description

Spacing: 5.2 mm
Amperage Rating: 32 A
Voltage Rating: 1000 V
Color: Orange
Size: 5.2 mm Width X 49.8 mm Height X 26.8 mm Depth
Power Loss: 1 W
Impulse Withstand Voltage: 8 kV
Operating Temperature: -5 To +40 deg C
Number Of Poles: 10
Insulation: Polyamide

Tech Info

CB, GOST Certified, RoHS Compliant
