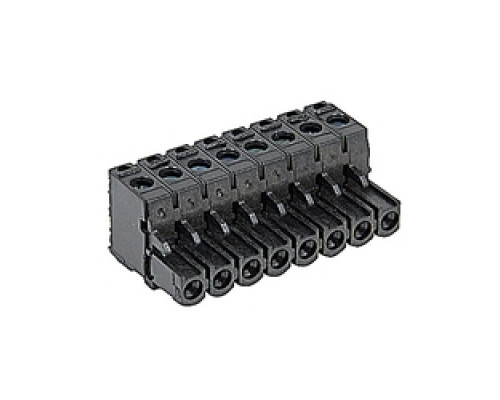

TE-ENERGY 009430807 Female Plug Screw Clamp 8 Pole Compatible With M2, 5/5

Applications

For PCB

Features

• Wires parallel to connection

Specification Description

Number Of Terminals: 8
Wire Size: Solid/Stranded: 0 - 2.5 mm2 (IEC), 24 - 12 AWG (UL, CSA)
Spacing: 58 mm
Amperage Rating: 12 A (IEC), 15 A (UL, CSA)
Voltage Rating: 250 V (IEC), 300 V (UL, CSA)
Color: Black
Connection: Screw Clamp
Size: 20.8 mm Width X 15 mm Height
Enclosure: NEMA 1, IP20
Operating Temperature: 100 deg C
Contact Resistance: Less Than 5 mOhm/km
Wire Strip Length: 7.5 mm
Tightening Torque: 0.4 N-m

Tech Info

CE Certified
