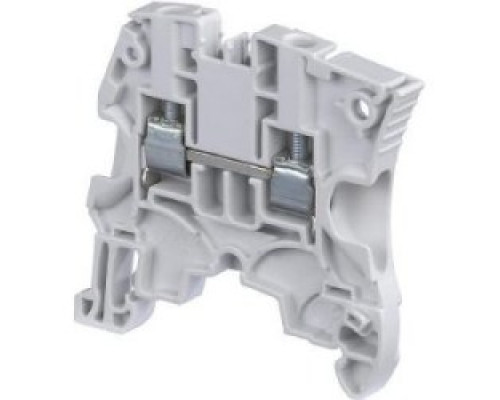

TE-ENERGY 010500127 010500127 M4/6-GN Screw Clamp Terminal Blocks Feed-through

Applications

The screw clamp is the most recognized and widely used connection technology. Entrelec by ABB’s screw clamp connections are strong and secure and also, mount on industry standard DIN rails.

Features

• Feed through and ground terminal blocks
• Numerous Functions
• Self-Locking Clamp Design
• Funneled Side Entry for up to Two Ferruled or Non-Ferruled Solid or Stranded Wires
• Wide Range of Wire Sizes from 24 AWG to 2 AWG, Solid or Stranded
• Terminal Block Spacing Range of 5 mm to 160.5 mm
• Current Carrying Capacity up to 310 Amps with Rated Voltages Ranging from 300 to 600
• IP20 Protection (Touch-Safe)
• Complete Line of Accessories, Marking Systems & Ferrules and Tools

Specification Description

Number Of Terminals: 2
Wire Size: UL Standard: 22 - 10 AWG (Solid And Stranded)
Spacing: 6 mm
Amperage Rating: 30 A (UL)
Voltage Rating: 600 V (UL)
Color: Green
Mounting: DIN 1 - 3 Rail
Connection: Screw Clamp
Size: 1.75 in. Width X 29 in. Height
Flammability: V0 (UL94)
Tightening Torque: 4.4 - 7.1 in-lb
Pollution Degree: 2
Gauge Type: A4
Wire Strip Length: 0.37 in.
Screw Driver Size: 4 mm
Dielectric Test Voltage: 3500 V

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
