TE-ENERGY 0115 118.11 M6/8 Feed-Through Terminal Block, Gray

Features

• Feed through and ground terminal blocks

Specification Description

Number Of Terminals: 2
Wire Size: UL Standard: 22 - 8 AWG (Solid And Stranded)
Spacing: 8 mm
Amperage Rating: 50 A (UL)
Voltage Rating: 600 V (UL)
Color: Grey
Mounting: DIN 1 - 3 Rail
Connection: Screw Clamp

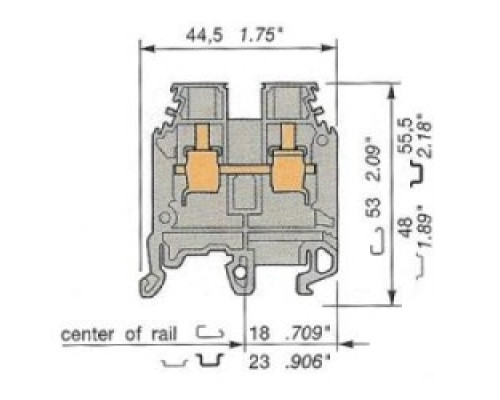

Size: 1.75 in. Width X 29 in. Height
Flammability: V0 (UL94)
Tightening Torque: 7.1 - 8.9 in-lb
Gauge Type: A5
Wire Strip Length: 0.47 in.
Pollution Degree: 2
Screw Driver Size: 4 mm
Dielectric Test Voltage: 3500 V

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
