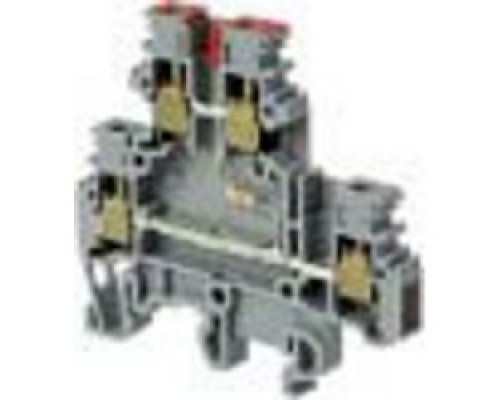

TE-ENERGY 011517825 M4/6.DL Screw Clamp Terminal Blocks Component holder

Applications

The screw clamp is the most recognized and widely used connection technology. Entrelec by ABB’s screw clamp connections are strong and secure and also, mount on industry standard DIN rails.

Features

• 1 connection with 4 inputs on 2 decks
• Equipped with a non protected LED 24 V
• Numerous Functions
• Self-Locking Clamp Design
• Funneled Side Entry for up to Two Ferruled or Non-Ferruled Solid or Stranded Wires
• Wide Range of Wire Sizes from 24 AWG to 2 AWG, Solid or Stranded
• Terminal Block Spacing Range of 5 mm to 160.5 mm
• Current Carrying Capacity up to 310 Amps with Rated Voltages Ranging from 300 to 600
• IP20 Protection (Touch-Safe)
• Complete Line of Accessories, Marking Systems & Ferrules and Tools

Specification Description

Wire Size: Solid: 0.2 - 4 mm2 (NFC/DIN), 22 - 12 AWG (UL/CSA), Stranded: 0.22 - 4 mm2 (NFC/DIN), 22 - 12 AWG (UL/CSA)
Spacing: 6 mm
Amperage Rating: 20 A (NFC/DIN, UL/CSA)
Voltage Rating: 500 V Gr.C (NFC/DIN), 600 V (UL), 300 V (CSA)
Color: Grey
Enclosure: NEMA 1, IP20
Tightening Torque: 0.5 - 0.6 N-m
Wire Strip Length: 8.5 mm
Gauge Type: A4
Screw Driver Size: 4 mm
Screw Size: M4/6
