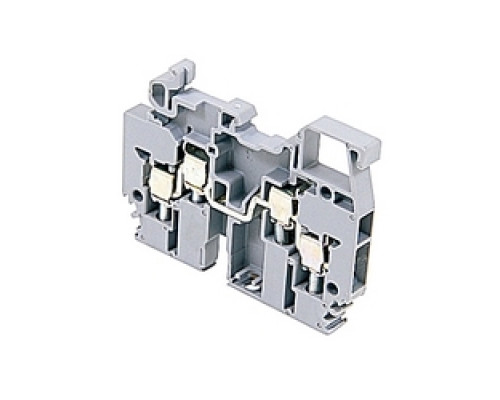

TE-ENERGY 011547923 Terminal Block Screw, 4 Wire, 22-10AWG, Grey

Features

• Feed through and ground terminal blocks
• Single pole, multiclamp terminal blocks

Specification Description

Number Of Terminals: 4
Wire Size: UL Standard: 22 - 10 AWG (Solid And Stranded)
Spacing: 6 mm
Amperage Rating: 20 A (UL)
Voltage Rating: 600 V (UL)
Color: Grey
Mounting: DIN 1 - 3 Rail
Connection: Screw Clamp
Size: 2.5 in. Width X 29 in. Height
Flammability: V0 (UL94)
Wire Strip Length: 0.37 in.
Pollution Degree: 2
Tightening Torque: 4.4 - 7.1 in-lb
Gauge Type: A4
Dielectric Test Voltage: 2500 V
Screw Driver Size: 4 mm

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
