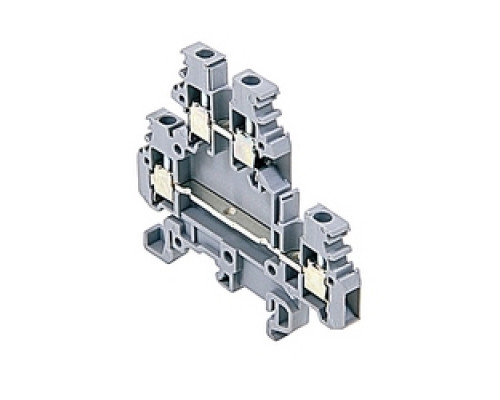

TE-ENERGY 011549013 Terminal Block, Comp Double Level, Grey, 24-12AWG Wire, 20A

Features

• Feed through terminal blocks
• Double-deck

Specification Description

Number Of Terminals: 4
Wire Size: UL Standard: 22 - 12 AWG (Solid And Stranded)
Amperage Rating: 20 A (UL)
Spacing: 5 mm
Voltage Rating: 300 V (UL)
Color: Grey
Mounting: DIN 1 - 3 Rail
Connection: Screw Clamp
Size: 2.57 in. Width X 2.54 in. Height
Flammability: V0 (UL94)
Pollution Degree: 2
Wire Strip Length: 0.354 in.
Tightening Torque: 3.5 - 5.3 in-lb
Gauge Type: A3
Dielectric Test Voltage: 2500 V
Screw Driver Size: 3.5 mm

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
