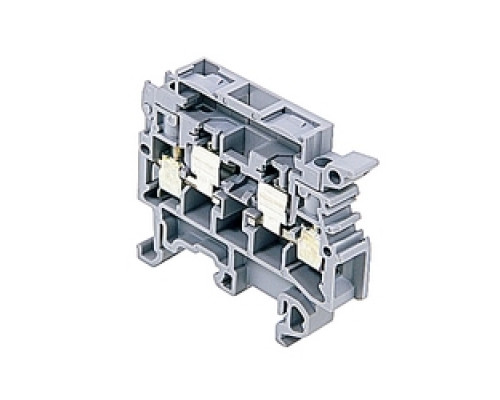

TE-ENERGY 011566222 Fuse Holder Terminal Block Grey with Test Diameter 2mm 22-12 AWG

Features

• Block with test socket diameter 2 mm
• Fuse holder terminal blocks 5 X 20 mm, 0.197 X 0.787 in.
• Fuse screw clamp 5 X 25 mm, 0.197 X 0.984 in.

Specification Description

Wire Size: UL Standard: 22 - 12 AWG (Solid And Stranded)
Amperage Rating: 10 A (UL)
Spacing: 8 mm
Voltage Rating: 600 V (UL)
Color: Grey
Mounting: DIN 1 - 3 Rail
Connection: Screw Clamp
Size: 2.23 in. Width X 2.1 in. Height
Flammability: V0 (UL94)
Pollution Degree: 2
Tightening Torque: 4.4 - 7.1 in-lb
Gauge Type: A4
Wire Strip Length: 0.37 in.
Screw Driver Size: 4 mm

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
