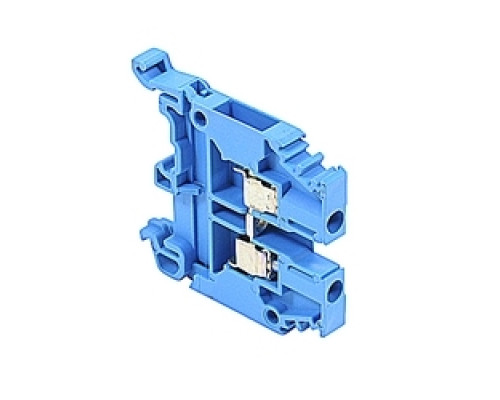

TE-ENERGY 012511601 ETR M4/6.N Blue Term Block

Features

• Feed through and ground terminal blocks

Specification Description

Number Of Terminals: 2
Wire Size: UL Standard: 22 - 10 AWG (Solid And Stranded)
Spacing: 6 mm
Amperage Rating: 30 A (UL)
Voltage Rating: 600 V (UL)
Color: Blue
Mounting: DIN 1 - 3 Rail
Connection: Screw Clamp
Size: 1.75 in. Width X 2.18 in. Height
Flammability: V0 (UL94)
Wire Strip Length: 0.37 in.
Pollution Degree: 2
Tightening Torque: 4.4 - 7.1 in-lb
Gauge Type: A4
Screw Driver Size: 4 mm
Dielectric Test Voltage: 3500 V

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
