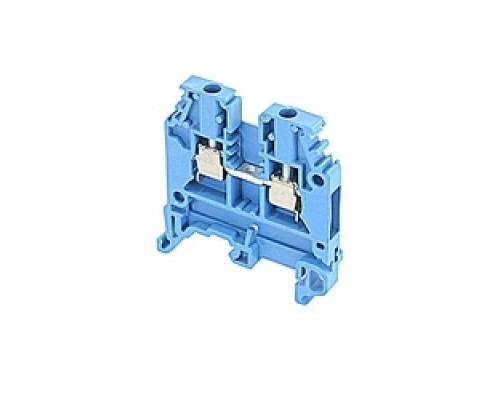

TE-ENERGY 012548605 Feed Through Terminal Block 22-12AWG 2 Pole Screw Blue Ma 2.5/5.N

Features

• Feed through and ground terminal blocks

Specification Description

Number Of Terminals: 2
Wire Size: UL Standard: 22 - 12 AWG (Solid And Stranded)
Spacing: 5 in.
Amperage Rating: 30 A (UL)
Voltage Rating: 600 V (UL)
Color: Blue
Mounting: DIN 1 - 3 Rail
Connection: Screw Clamp
Flammability: V0 (UL94)
Wire Strip Length: 0.39 in.
Tightening Torque: 3.5 - 5.3 in-lb
Screw Driver Size: 3.5 mm
Gauge Type: A3
Dielectric Test Voltage: 3500 V

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
