Spec Sheet
Applications

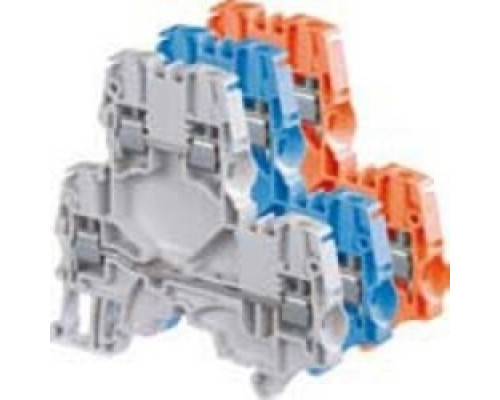

The screw clamp is the most recognized and widely used connection technology. Entrelec by ABB’s screw clamp connections are strong and secure and also, mount on industry standard DIN rails.
Features
- High wiring density on two decks
- Numerous Functions
- Self-Locking Clamp Design
- Funneled Side Entry for up to Two Ferruled or Non-Ferruled Solid or Stranded Wires
- Wide Range of Wire Sizes from 24 AWG to 2 AWG, Solid or Stranded
- Terminal Block Spacing Range of 5 mm to 160.5 mm
- Current Carrying Capacity up to 310 Amps with Rated Voltages Ranging from 300 to 600
- IP20 Protection (Touch-Safe)
- Complete Line of Accessories, Marking Systems & Ferrules and Tools
Specification Description
Wire Size: Rigid: (1) 24 - 10 AWG (UL 1059), (2) 24 - 14 AWG (UL 1059), Flexible: (1) 24 - 10 AWG (UL 1059), (2) 24 - 14 AWG (UL 1059), Flexible With Non Insulated Ferrule: (1) 24 - 12 AWG, Flexible With Insulated Ferrule: (1) 24 - 12 AWG, Flexible With Twin Ferrule:(2) 24 - 14 AWG
Spacing: 6 mm
Amperage Rating: 40 A, 720 A At 1 sec Short-Time Withstand
Voltage Rating: 800 V
Color: Grey
Mounting: DIN Rail: TH35-15 (35 Length X 15 mm Width), TH35-7.5 (35 Length X 7.5 mm Width)
Connection: Screw Clamp
Size: 6 mm Width X 70.4 mm Height X 65.5 mm Depth
Flammability: V0 (UL94)
Overvoltage Category: III
Dielectric Test Voltage: 2000 V
Pollution Degree: 3
Impulse Withstand Voltage: 8 kV
Operating Temperature: -5 To +40 deg C
Wire Strip Length: 0.394 in.
Screw Driver Size: 0.157 in. Flat
Power Loss: 2.6 W
Tightening Torque: 7.52 in-lb
Gauge Type: A4-B3
Insulation: Polyamide
Tech Info
C/US UR Listed, ATEX, CB, CE, GOST Certified, IECEx Approved, RoHS Compliant
