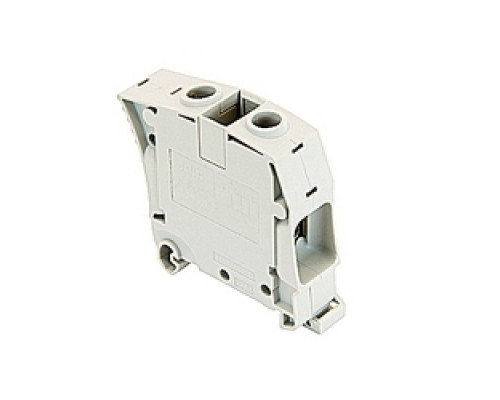

TE-ENERGY 1SNK516010R0000 ZS35 Screw Clamp Terminal Block - Feed-Through - Grey

Features

• Sub-function: 2 clamps

Specification Description

Wire Size: Rigid: (1) 10 - 0 AWG (UL 1059), (2) 10 - 6 AWG (UL 1059), Flexible: (1) 10 - 0 AWG (UL 1059), (2) 10 - 6 AWG (UL 1059), Flexible With Non Insulated Ferrule: (1) 24 - 2 AWG, Flexible With Insulated Ferrule: (1) 10 - 2 AWG, Flexible With Twin Ferrule:(2) 10 - 8 AWG
Spacing: 16 mm
Amperage Rating: 125 A, 4200 A At 1 sec Short-Time Withstand
Voltage Rating: 1000 V
Color: Grey
Mounting: DIN Rail: TH35-15 (35 Length X 15 mm Width), TH35-7.5 (35 Length X 7.5 mm Width)
Connection: Screw Clamp
Size: 16 mm Width X 60.3 mm Height X 54.3 mm Depth
Flammability: V0 (UL94)
Dielectric Test Voltage: 2200 V
Overvoltage Category: III
Operating Temperature: -5 To +40 deg C
Impulse Withstand Voltage: 8 kV
Pollution Degree: 3
Screw Driver Size: 0.256 in. Flat
Insulation: Polyamide
Tightening Torque: 25.7 in-lb
Power Loss: 4 W
Wire Strip Length: 0.669 in.
Gauge Type: A9-B9

Tech Info

UL Listed, ATEX, CB, CE, GOST Certified, IECEx Approved, RoHS Compliant
