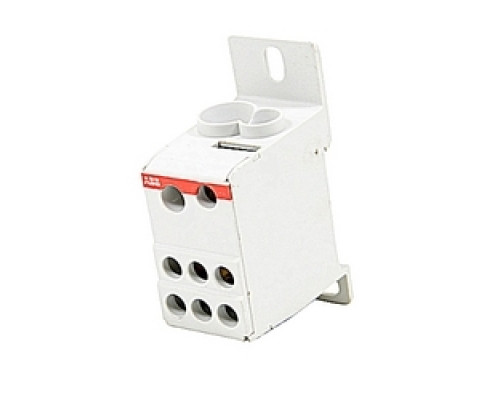

TE-ENERGY 1SNL312510R0000 DBL125 Distribution Block, 1-P, 125A DIN: 1X8-2AWG/1X10-6AWG Out:6X14-6AWG

Features

• Distribution blocks, single pole

Specification Description

Wire Size: UL/CSA Standard: 8 - 2 /10 - 6 AWG Left/Right Inputs Size, 14 - 6 AWG Outputs With/Without Ferrules
Spacing: 136 in.
Amperage Rating: 125 A (UL/CSA)
Voltage Rating: 600 V (UL/CSA)
Color: Grey Body
Mounting: DIN 3 Rail
Connection: Screw C
Number Of Poles: 1
Tightening Torque: 31/17.6 in-lb

Tech Info

UL Listed, CSA, IEC, NFC/VDE Certified, RoHS Compliant
