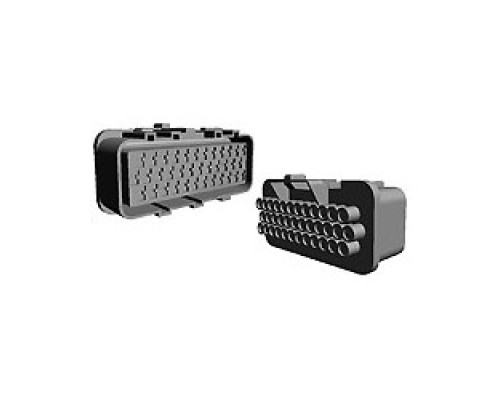

TE-ENERGY 344111-1 Econoseal III; 070 Series Wire-to-Board Applies To Wire/Cable Connector Housing

Specification Description

Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
Industry Standards.Lead Free Solder Processes: Not relevant for lead free process
Body Features.Number of Positions: 36
Body Features.Number of Rows: 12 x 3
Packaging Features.Packaging Method: Bag, Box
Mechanical Attachment.Mating Retention Type: Latching
Body Features.Length (X-Axis) (mm [in]): 30.50 [1.2007]
Body Features.Centerline (mm [in]): 5.00 [0.197]
Housing Features.Mating Alignment: With
Product Type Features.Sealed: Yes
Housing Features.Housing Color: Black
Operation/Application.Application Use: Wire-to-Board
Housing Features.Mating Alignment Type: Polarization
Mechanical Attachment.Panel Mount Retention: Without
Product Type Features.Strain Relief: Without
Body Features.Width (Z-Axis) (mm [in]): 70.80 [2.787]
Housing Features.Connector Style: Receptacle
Conditions for Usage.Applies To: Wire/Cable
Electrical Characteristics.Operating Voltage Reference: DC
Body Features.Mating Retention: With
Dimensions.Profile Height (Y-Axis) (mm [in]): 36.15 [1.423]
Product Type Features.Product Type: Connector
Contact Features.Contact Type: Socket
Product Type Features.Connector Type: Housing
Packaging Features.Packaging Quantity: 100
Electrical Characteristics.Shielded: No
Product Type Features.Series: 70
Product Type Features.Wire/Cable Type: Discrete Wire
Product Type Features.Cable Type: Thin Wall
Housing Features.Housing Material: Nylon
Termination Features.Wire/Cable Size (AWG): 14 20
Body Features.Wire Type: Stranded
Termination Features.Wire/Cable Size (mm): 0.5 2
Body Features.Row-to-Row Spacing (mm [in]): 6.00 [0.236]
Body Features.Peripheral Seal Material: Silicone Rubber
Body Features.Peripheral Seal Color: Orange
Termination Features.Seal Type: Peripheral
Product Type Features.Make First / Break Last: No
Other.GET 0.64 Connector System: No
Body Features.ESD Protection: Without
