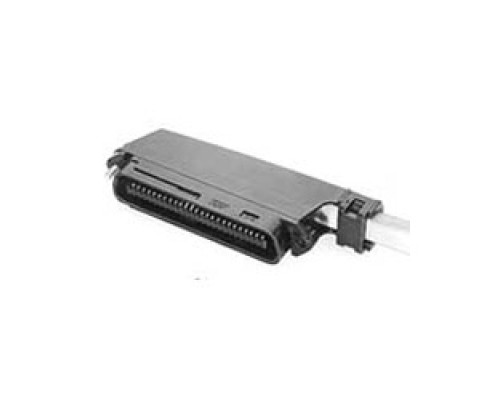

TE-ENERGY 5229912-1 Connector Kit, Plug, Shielded, Cable-To-Board, Cable-To-Cable, Discrete Wire, Round Jacketed Cable, 50 Positions, 2-Rows

Specification Description

Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
Industry Standards.Lead Free Solder Processes: Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265C
Product Type Features.Color: Black
Body Features.Number of Positions: 50
Packaging Features.Packaging Method: Individual Kit
Mechanical Attachment.Panel Mount Retention: Without
Product Type Features.Product Type: Kit
Body Features.Cable Outer Diameter (mm [in]): 8.89 10.80 [0.350 0.425]
Electrical Characteristics.Shielded: No
Product Type Features.Product Category: Connectors
Product Type Features.Wire/Cable Type: 7 Strand, Solid
Product Type Features.Gender: Plug
Product Type Features.Kit Type: Connector Kit
Product Type Features.Profile: Standard
Body Features.Wire Range (Solid) (mm [AWG]): 0.51-0.40 [24-26]
Product Type Features.Connector Classification: IDC
Housing Features.Housing Color Dot Designation: Blue
Body Features.Wire Range (Stranded) (mm [AWG]): 0.20 [24]
Product Type Features.Slot Type Letter Code: B
Product Type Features.Mating Connector Lock: Without
Contact Features.Contact Plating, Mating Area, Material: Gold (30), Gold Flash over Palladium Nickel
