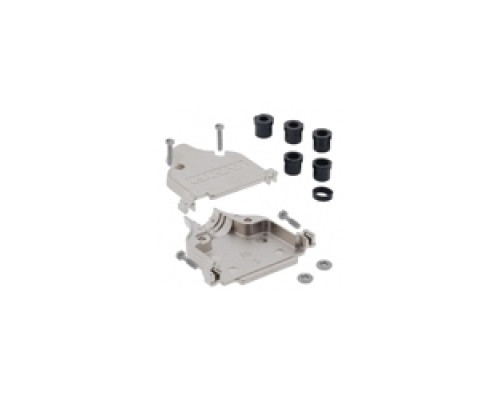

TE-ENERGY 5748676-3 Backshell/Cable Clamp, Shell Size: 1, Shielded, 2-Piece RFI/EMI Shield, 180 degree, 4-40, Cable Insulation Dia.: 4.7 - 8.13 mm, Operating Temperature Range: -55 - 105 C

Specification Description

Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
Industry Standards.Lead Free Solder Processes: Not relevant for lead free process
Body Features.Number of Positions: 25
Packaging Features.Packaging Method: Individual Kit
Product Type Features.Product Type: Backshell/Cable Clamp
Product Type Features.Shell Size: 3
Other.Comment: Jackscrews must be purchased separately.
All parts are packaged unassembled.
Shielded cable clamps will not accept connector housings with clinch nuts.
Body Features.Cable Exit Angle: 180
Electrical Characteristics.Shielded: Yes
Product Type Features.Thread Size: 4 - 40
Body Features.Shield Plating: Bright Nickel over Copper
Body Features.Cable Clamp Material: Die Cast
Product Type Features.Grommets: With
Body Features.Long Turnable Jack Screw Part No.: 747784-3
Product Type Features.Cable Clamp Type: Two-Piece RFI/EMI Shield
Body Features.Cable Insulation Diameter (mm [in]): 6.48 11.94 [0.255 0.470]
Product Type Features.Number of Grommets Per Set: 6
