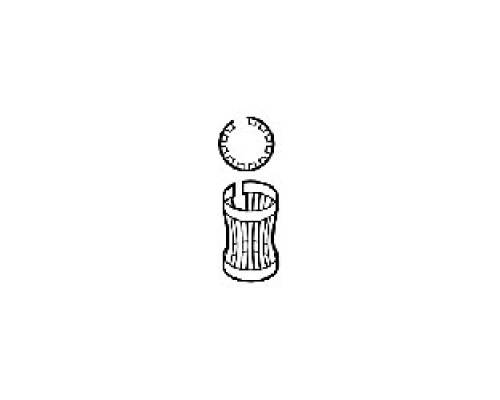

TE-ENERGY 6-192038-1 High Current Multiple Point Interface Contacts; Preformed Form Type: Bridge Band Length: 11.90 mm Pin Diameter: 7.11 mm Female

Specification Description

Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
Industry Standards.Lead Free Solder Processes: Not relevant for lead free process
Product Type Features.Gender: Female
Electrical Characteristics.Number of Louvers: 20
Body Features.Band Material: Beryllium Copper
Body Features.Preformed: Yes
Body Features.Product Name: LAIII
Body Features.Form Type: Bridge
Body Features.Band Length (mm [in]): 11.90 [0.470]
Body Features.Material Thickness (mm [in]): 0.203 [0.008]
Termination Features.Pin Diameter (mm [in]): 7.11 [0.280]
Body Features.Band Plating: Silver
Conditions for Usage.Suggested Current Limit (A): 125
