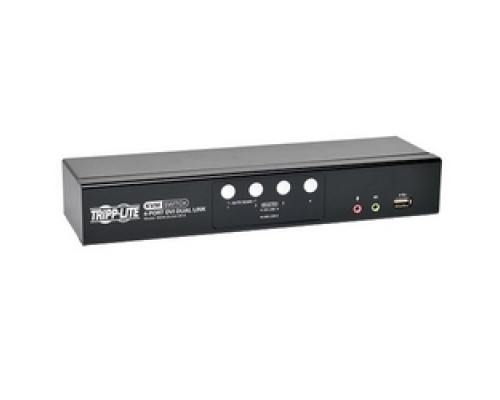

TRIPP LITE B004-DUA4-HR-K 4-Port DVI Dual-Link / USB KVM Switch w/ Audio and Cables

Applications

B004-DUA4-HR-K features additional audio jacks for use with 2.1 channel surround-sound

Features

• 4-Port DVI Dual Link/USB KVM switch with 7.1 channel surround-sound audio and USB 2.0 peripheral sharing (B004-DUA4-HR-K)
• Built-in 2-Port USB 2.0 hub allows USB devices to be shared amongst computers connected to the KVM switch
• 3.5 mm Mini Stereo Speaker and Microphone jacks allow a single microphone to provide audio input to each of the connected computers, and let you listen to the audio output of each computer on a single set of speakers
• B004-DUA4-HR-K features additional audio jacks for use with 2.1 channel surround-sound
• An additional set of console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
• The KVM, USB and Audio can be switched independently of each other
• Features mose port switching functionality*, which allows users accessing the KVM switch with a scroll mouse to switch between ports by double-clicking the mouse’s scroll wheel
• Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and the mouse switching function*
• Auto Scan mode allows you to scan the connected computers without having to manually switch between them
• Supports both analog and digital video signals, allowing for the connection of a VGA computer and/or monitor with a DVI to VGA adapter
• Supports digital video resolutions up to 2560 x 1600 and analog video resolutions up to 2048 x 1536
• Multi-platform support - Compatible with Windows, Mac, Sun and Linux
• Supports hot-plugging - Computers and devices can be unplugged ad re-plugged without having to shut down the KVM switch
• The KVM switch stores the monitor’s EDID (Extended Display Identification Data) to optimize display resolution
• LEDs provide for easy monitoring of connected computers
• Power-On-Detection recognize when a connected computer has been powered-off and automatically switches to the next powered-on computer
• HDCP compliant
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Console keyboard port emulation/byass feature supports most gaming/multimedia keyboards
• Complete keyboard emulation for error-free booting
• Multilingual keyboard mapping - supports English, Japanese, and French keyboards
• Quick installation without the need for software
• Sun/Mac keyboarsupport and emulation**
• Firmware upgradeable
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• *The mouse switching function is disabled by default, and needs to be turned on via keyboard hotkey command. It is only avail

Specification Description

3.5 mm Mini Stereo Speaker and Microphone jacks allow a single microphone to provide audio input to each of the connected computers, and let you listen to the audio output of each computer on a single set of speakers

Tech Info

The KVM, USB and Audio can be switched independently of each other
