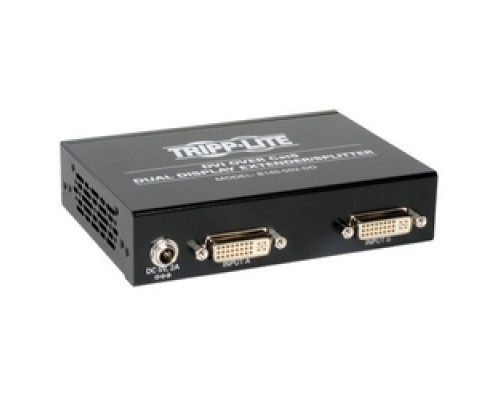

TRIPP LITE B140-002-DD B140-002-DD 2-Port Dual Display DVI over Cat5/Cat6 Extender Splitter, Video Transmitter, 1920x1080 at 60Hz, Up to 200-ft., TAA

Features

• Transmits a DVI-D Single-Link signal from a set of Dual DVI inputs to two sets of Dual Displays
• A B140-Series remote receiver is needed at each monitor
• For longer distances: Use a B140-1A0 active receiver to extend a 1920 x 1200 @ 60Hz signal up to 150 ft. from the transmitter (or a 1024 x 768 @ 60Hz signal up to 200 ft. from the transmitter)
• For shorter distances: Use a B140-1P0 passive receiver to extend a 1920 x 1200 @ 60Hz signal up to 50 ft. from the transmitter (or a 1024 x 768 @ 60Hz signal u p to 100 ft. from the transmitter)
• Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N202-Series to achieve maximum distance and resolution
• Further expand the range and number of monitors by adding B140-110 remote repeater units
• Add up to thre repeaters on each of the B140-002-DD channels, for a total of 4 displays per channel (An active receiver should be the last unit in a channel)
• A 1920 x 1200 @ 60Hz signal can be extended up to 125 ft. for each repeater added into a channel (or up to 1 75 ft. for a 1024 x 768 @ 60Hz signal)
• DVI 1.0 compliant
• HDCP compatible
• Mounting hardware included that allows the unit to be wall-mounted, rackmounted, or pole mounted
• Plug and play; no software or drivers required
• Compatible with all operating syms
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
